Pivot Cycles

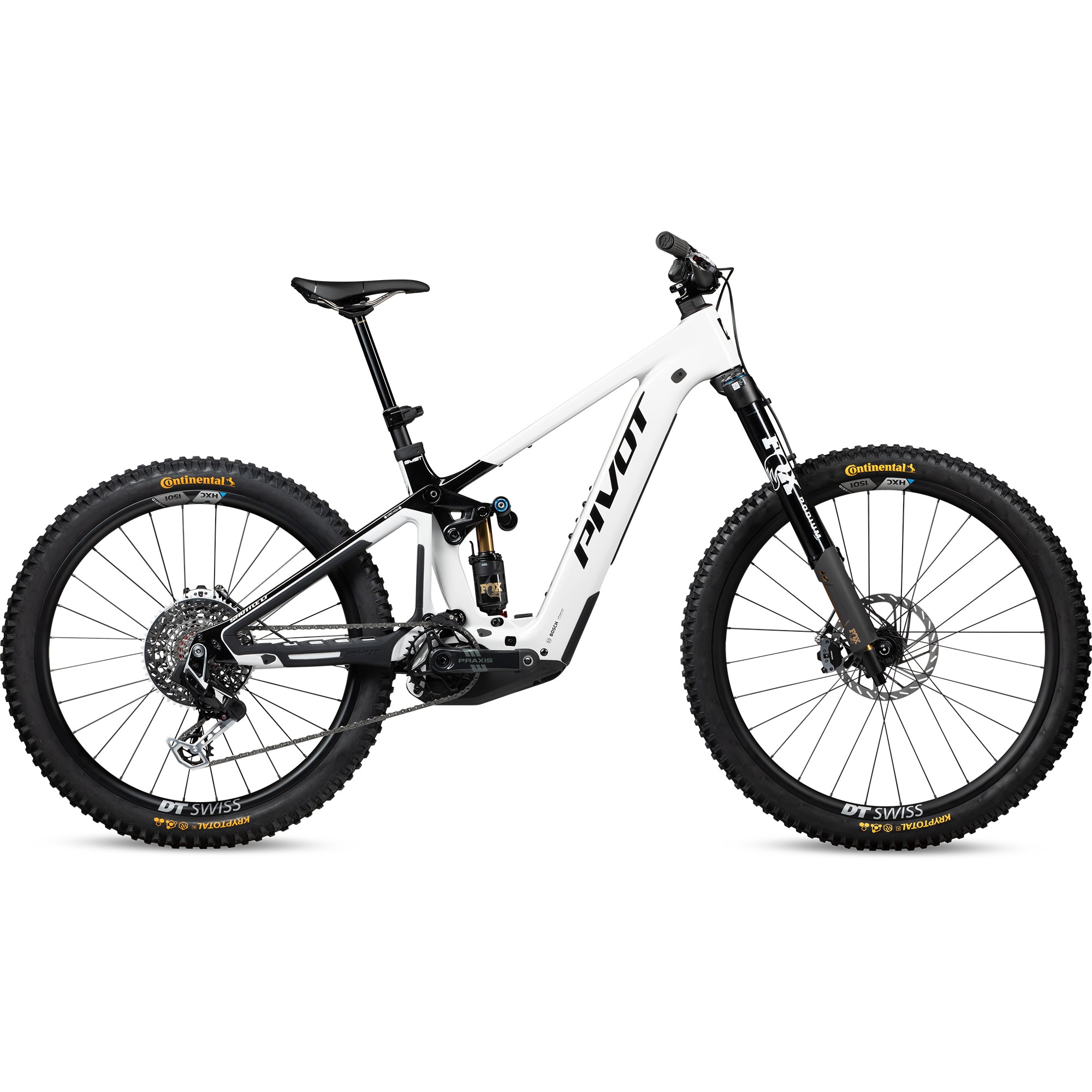

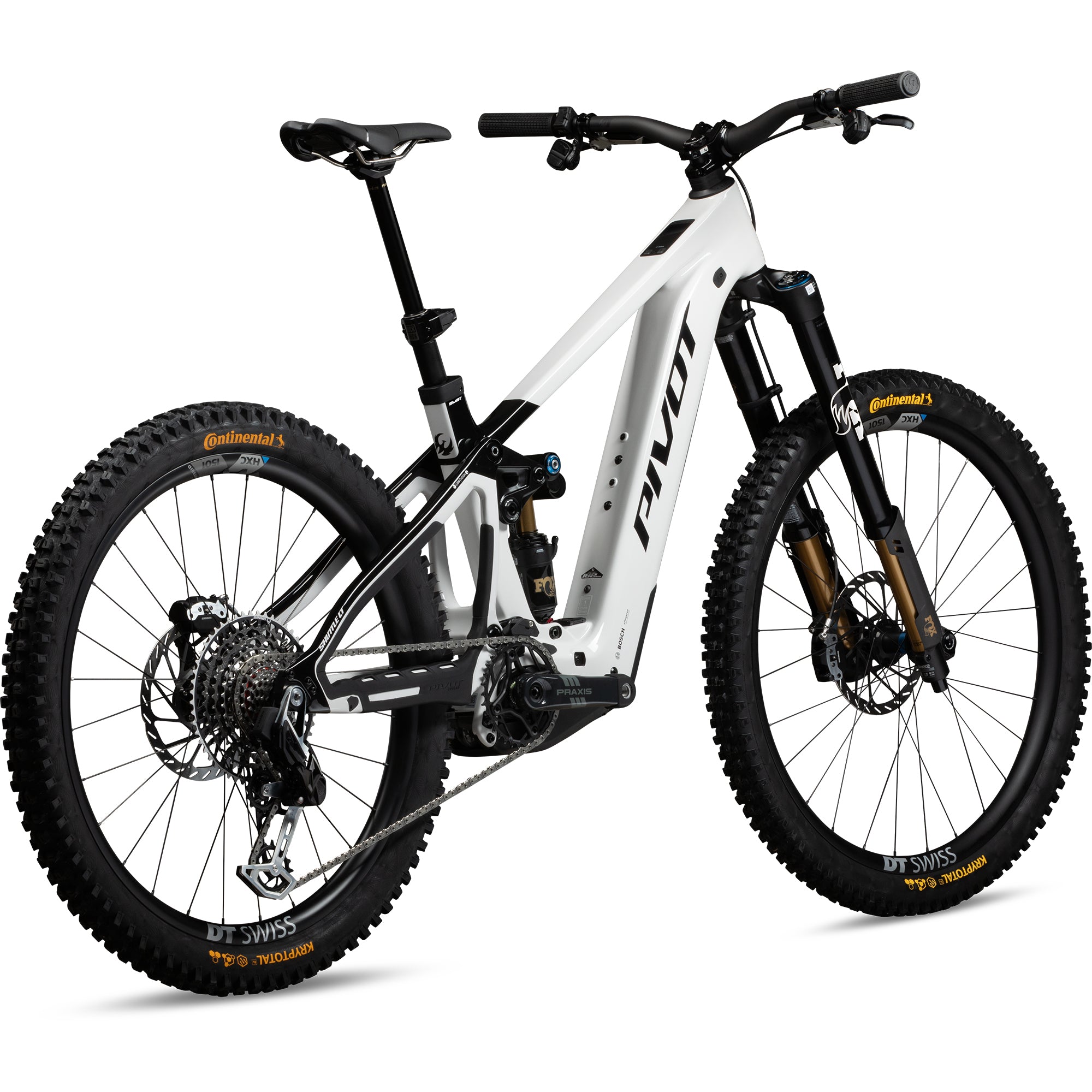

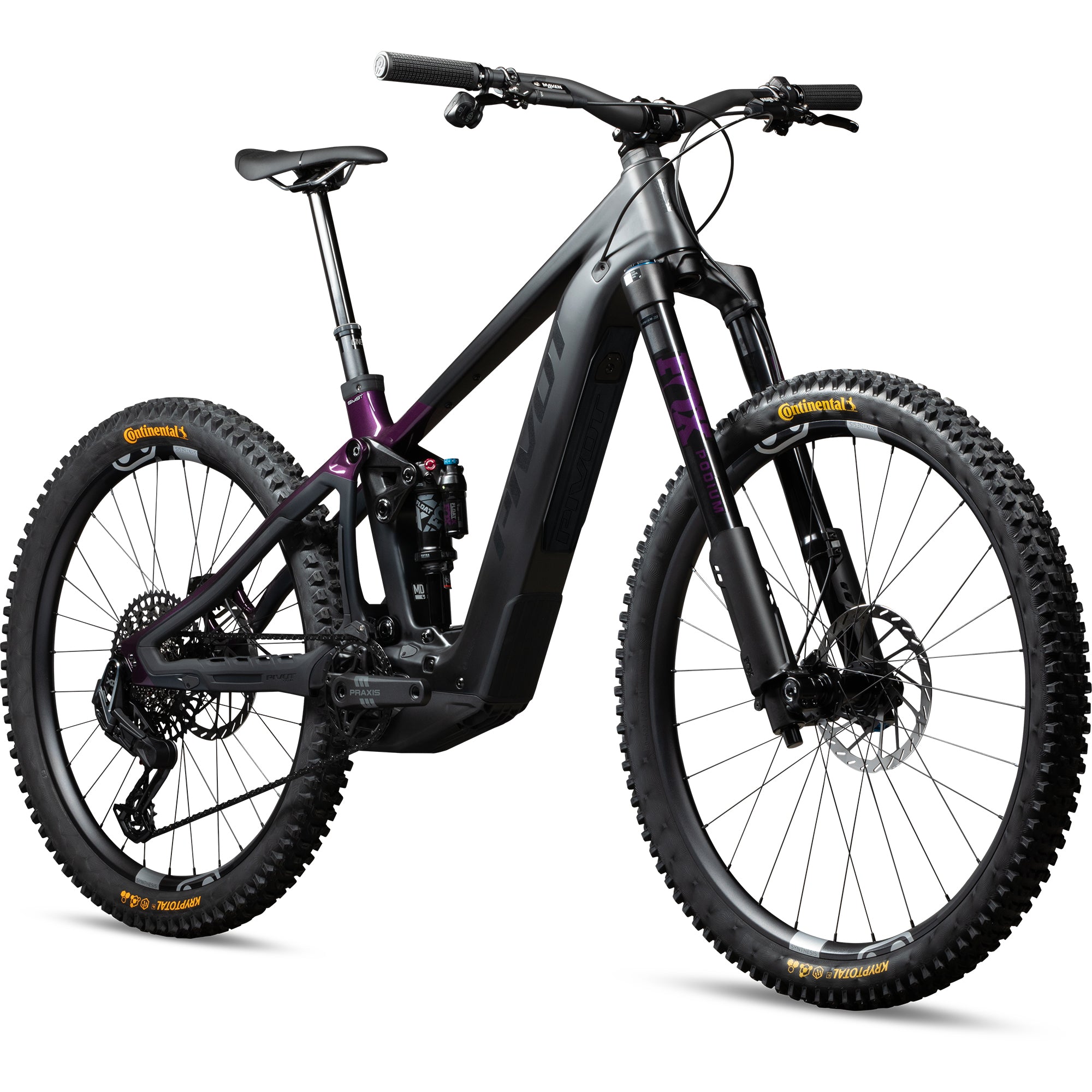

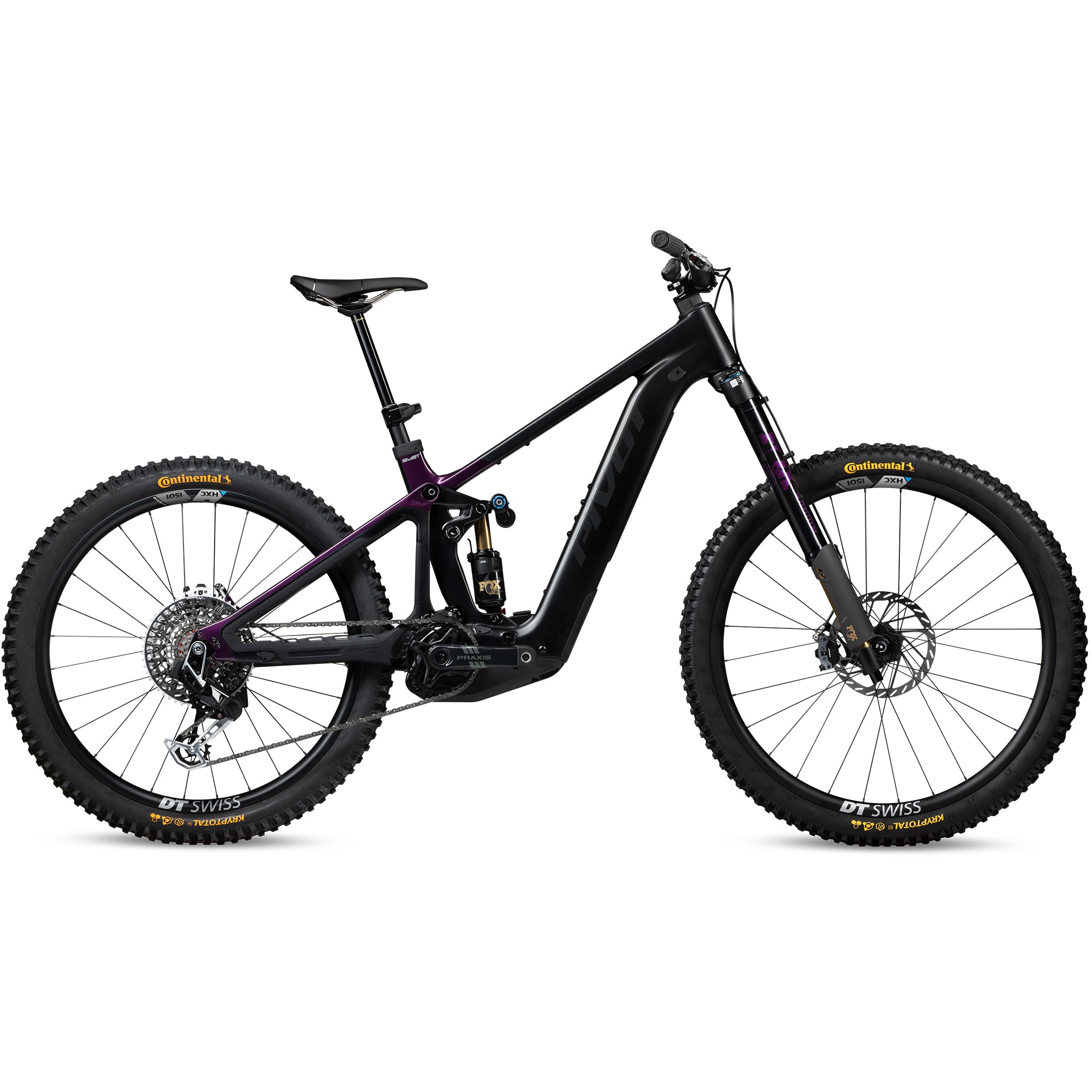

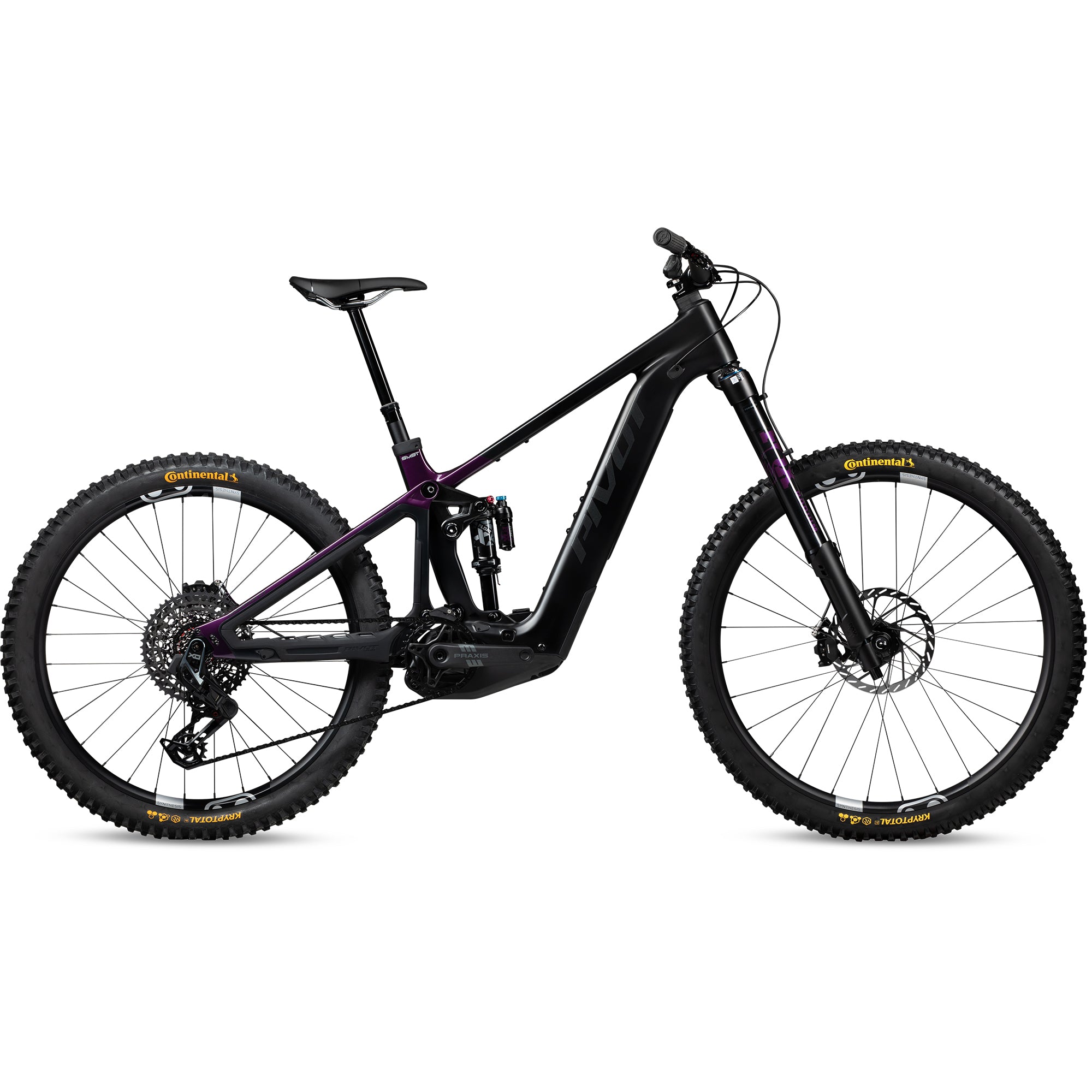

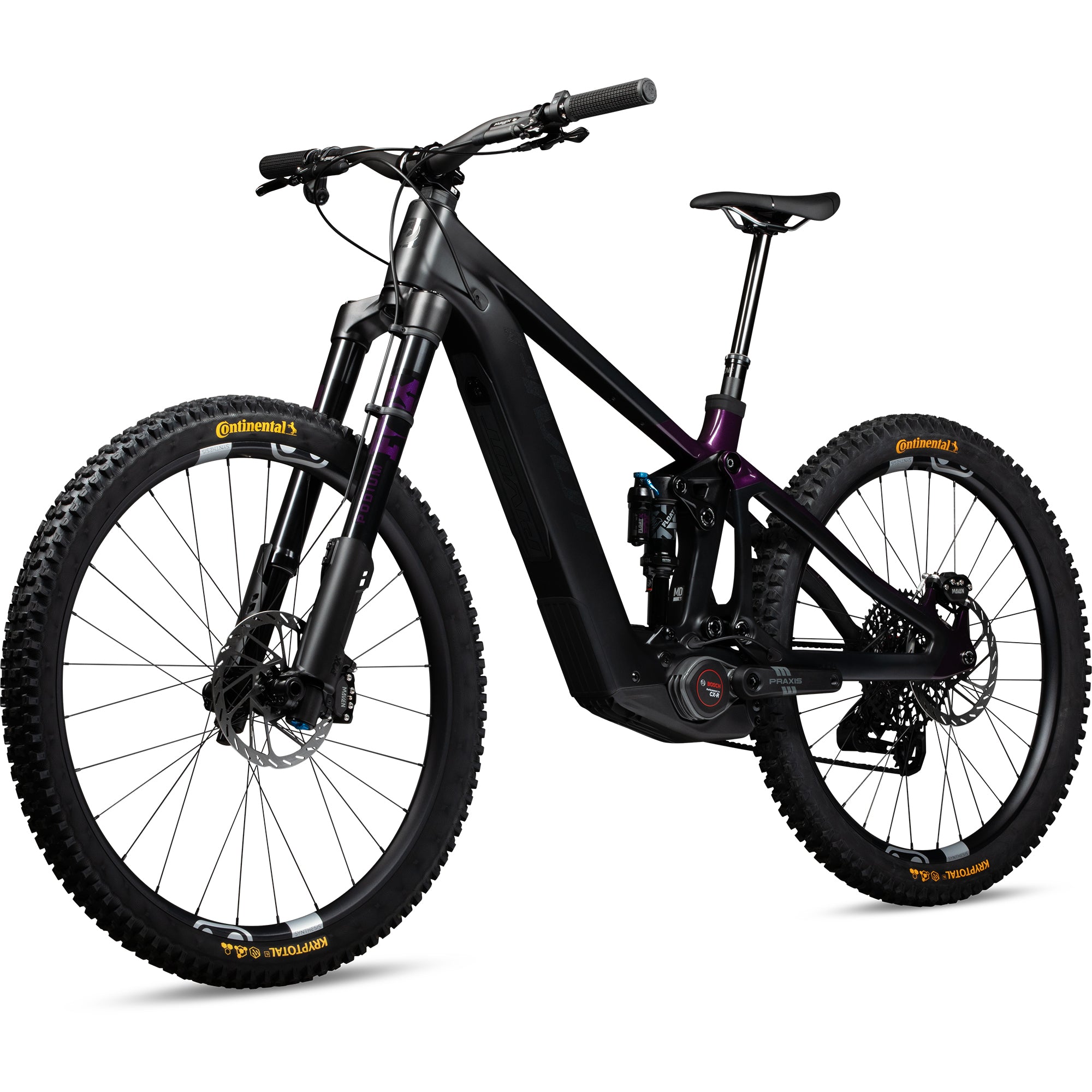

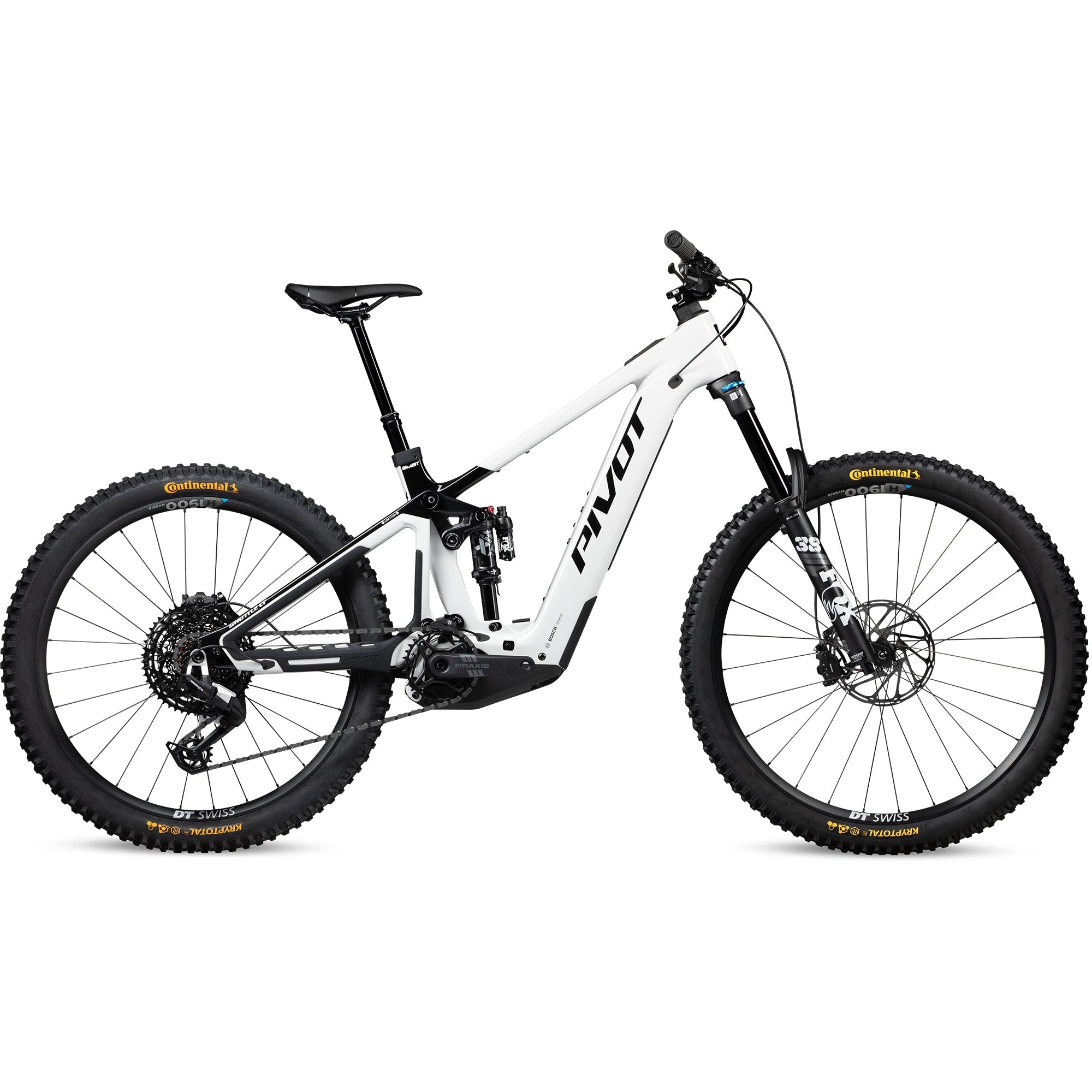

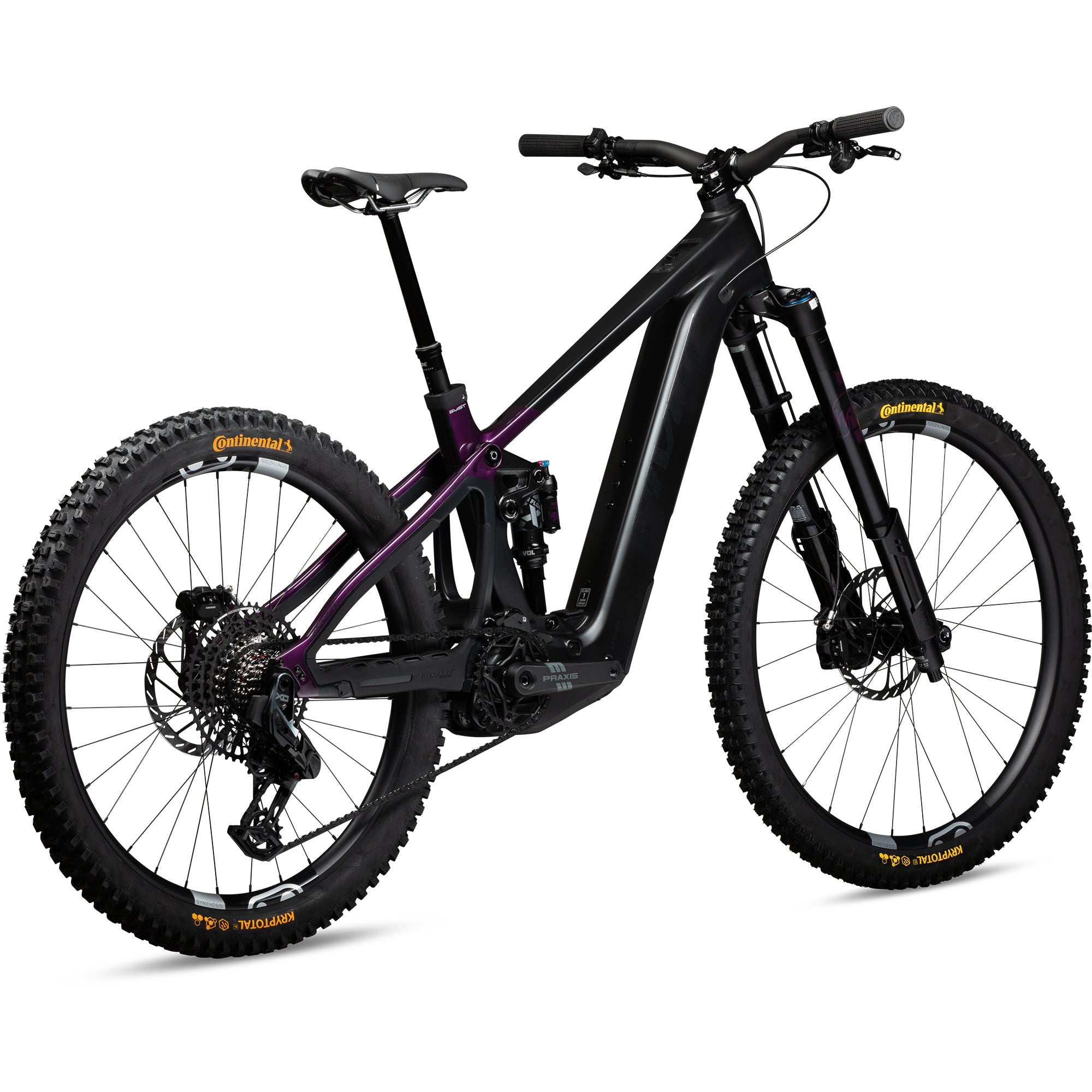

Pivot Cycles Shuttle LT V3
Overview
Enduro unleashed.
Electrified, honed and dead-set on domination, the Shuttle LT channels chaos and control through a long-travel chassis shaped by the frame's cutting edge design.
Key Features
- Independently engineered frame sizes through the proprietary ride tuning approach. Ensuring the same balance and performance throughout the range.
- Floating battery technology, a floating interface allows the frame to move naturally through impacts and cornering, preserving compliance, durability and ride feel. The 800Wh battery is also fully removable, allowing you to swap it for Bosch’s 600W battery for a lighter package on shorter riders.

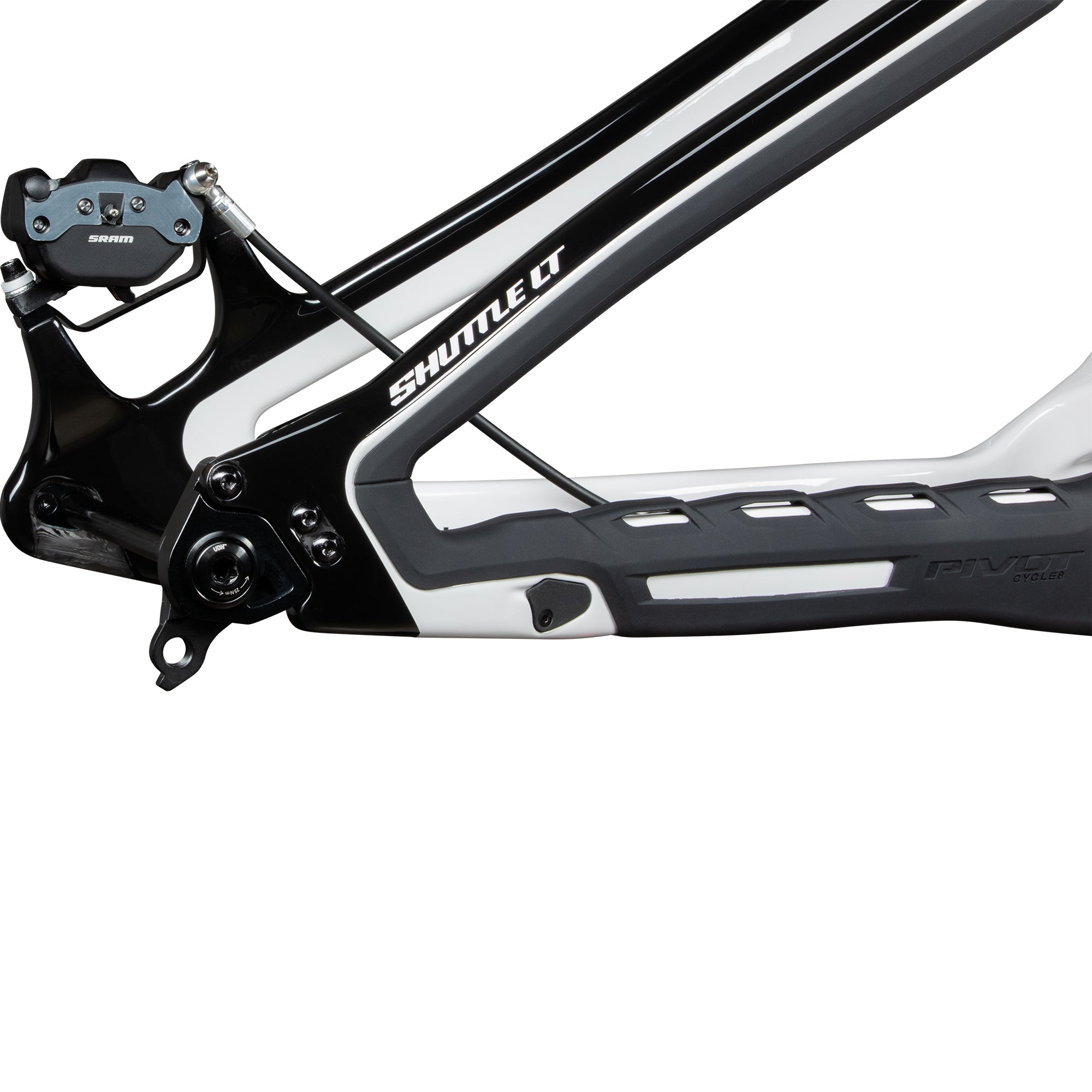

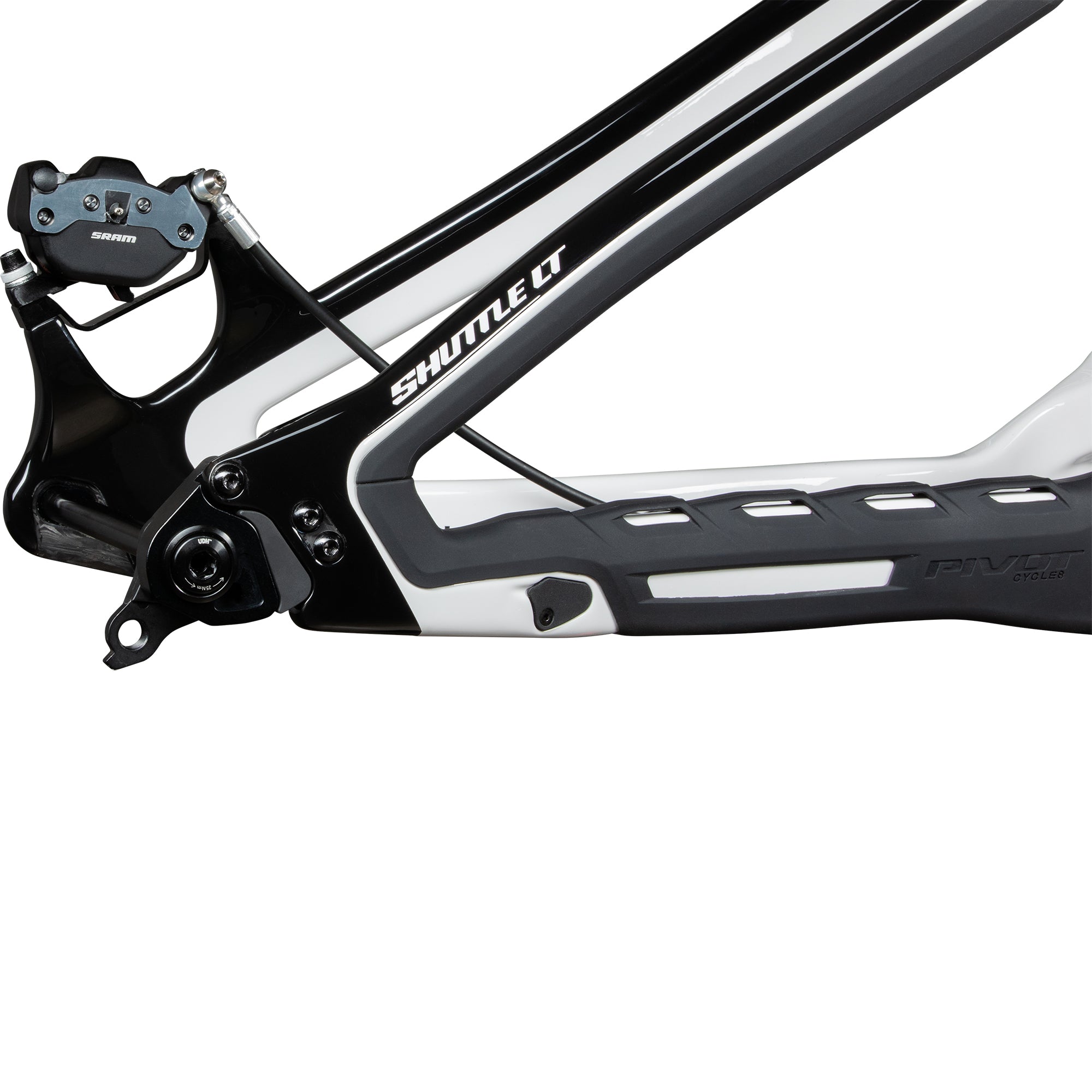

- Adjustable chainstay length – Pivot’s patented Swinger Dropout System is fully compatible with UDH and SRAM Transmission in either setting. Allowing riders to select between the short or long setting, providing 8mm of adjustment to the rear center.

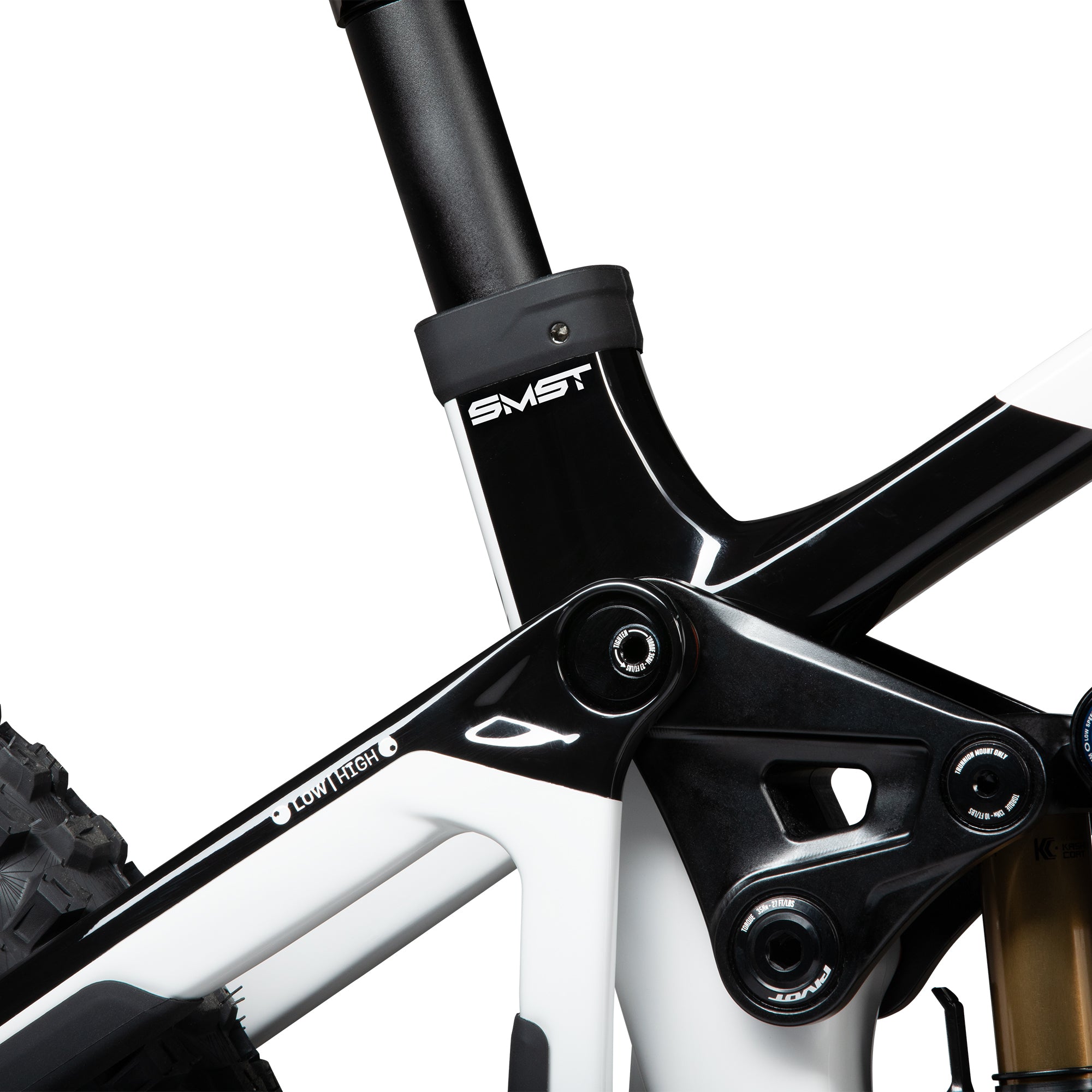

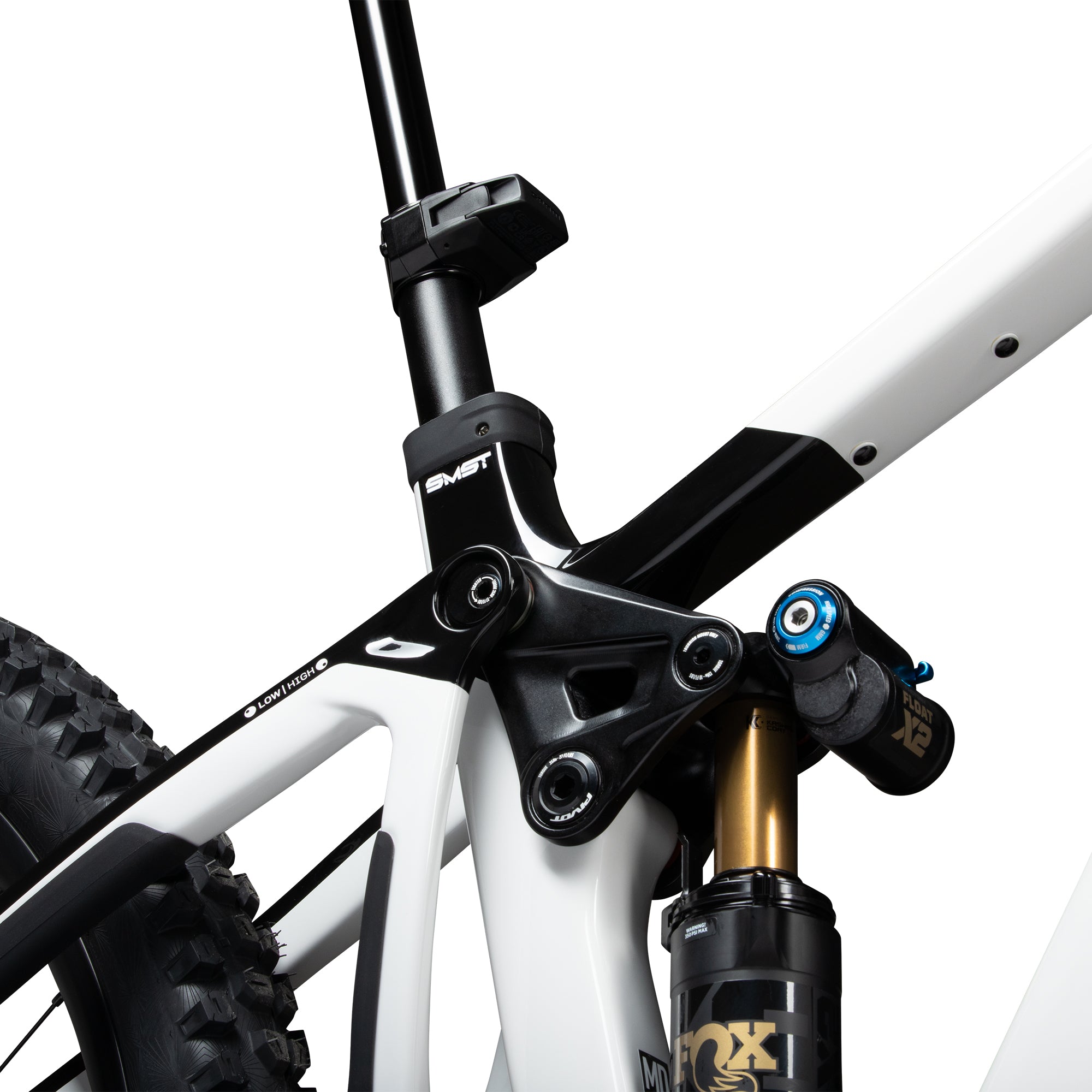

- Slacky McSteepTube, the world’s first system that allows independent adjustment of the seat tube angle. Fine tune between 78 degrees for long, sustained climbs and 76.5 degrees for mixed terrain and constant ups and downs.

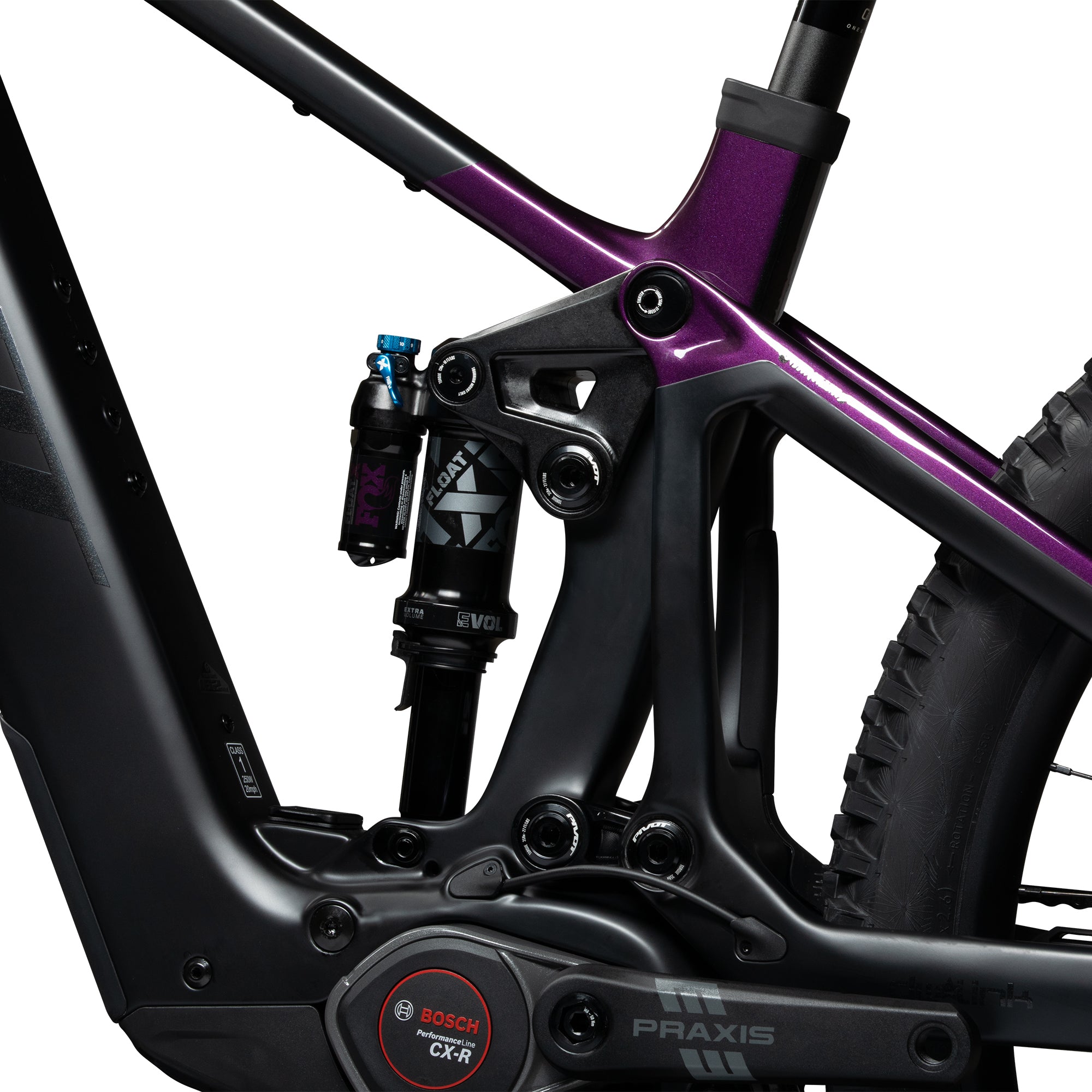

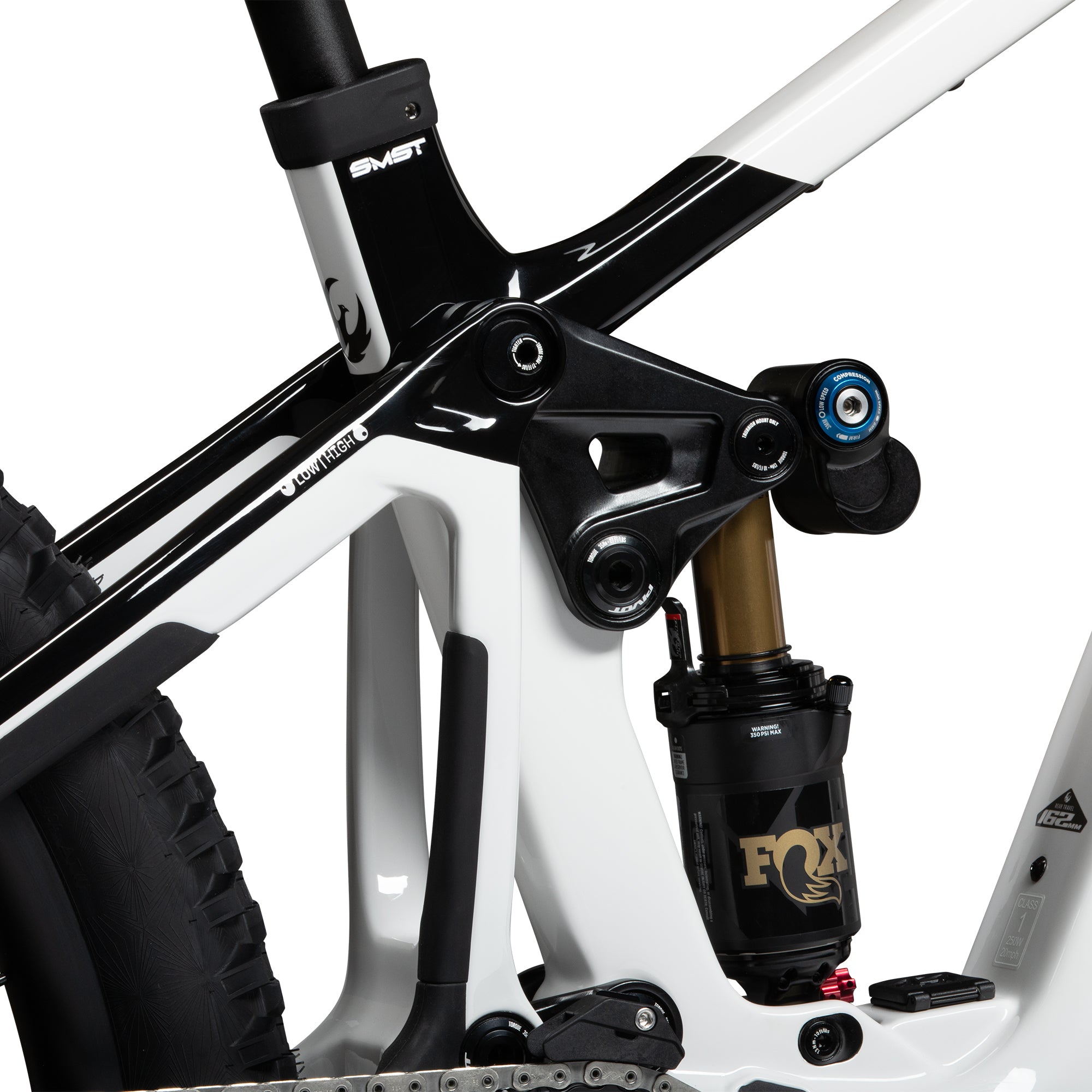

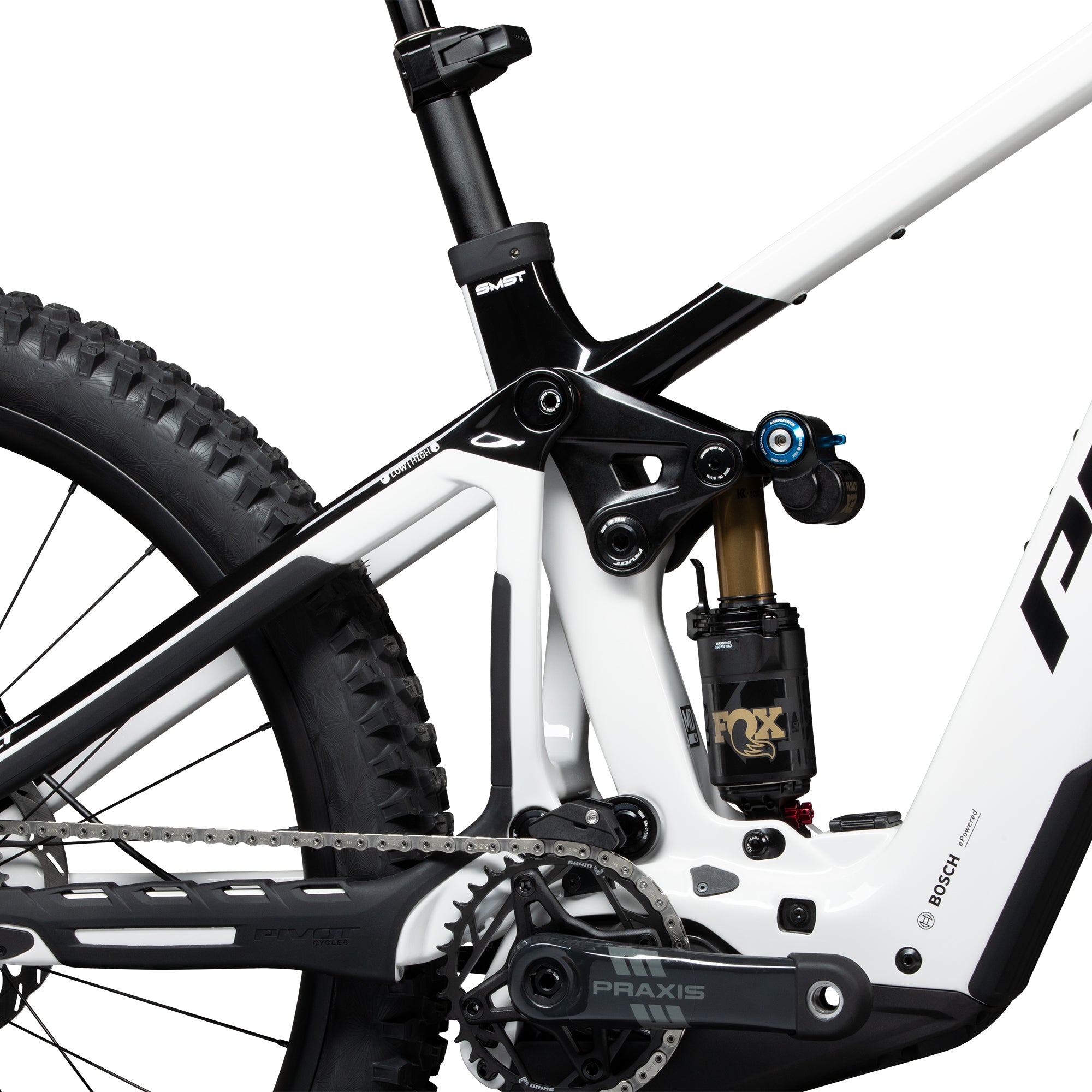

- Suspension Progressivity Flip Chip, adjustable progression via the lower mount flip chip allows riders to change the progressivity of the suspension curve
- 0 – 100% of travel: 36% om progressive, 32.7% if linear
- 30% (sag) to 90% of travel; 19.1% in progressive, 16.8% in linear
Product information
Returning a product is easy using our Returns Portal, which allows you to send your product back to us by dropping off your return items at any one of over 8,500 EVRI locations around the UK.
You have 30 days to return your item from when it reaches you
If you wish to return a product under warranty, please see our Saddleback Warranty Information page for more information.
- Standard delivery (3-5 working days) - £3.50
- Express delivery (1-2 working days) £4.99
For more information on delivery times and prices click here.
Holiday shipping deadlines
To receive your order before the 25th, please place it by Friday, December 19th. We’ll continue shipping through December 24th, but orders placed after December 19th may not arrive until after the holidays.
Holiday office & service hours
Dec 25th – Jan 1st
Office Closed – our team will be offline during this time (no phone or email support)
Tue, Dec 30th
Limited Shipping – warehouse will be processing limited orders (delivery expected Jan 2nd or later)
Fri, Jan 2nd
Back to normal – phone and email support are open again
Enduro unleashed.
Electrified, honed and dead-set on domination, the Shuttle LT channels chaos and control through a long-travel chassis shaped by the frame's cutting edge design.
For riders chasing true enduro performance with the added range and power of Bosch’s CX-R system. Every detail of its design, from dw-link suspension to carbon layups and geometry, was developed to make it ride like an analog bike, with Pivot’s famed responsiveness and balance, only electrified.
The most adjustable bike in Pivot’s line-up, the Shuttle LT can be dialled to meet every rider and condition. With an adjustable chainstay, proprietary seat tube angle adjustments, suspension and geometry flip chip mean that the ride can be fine-tuned to the rider.

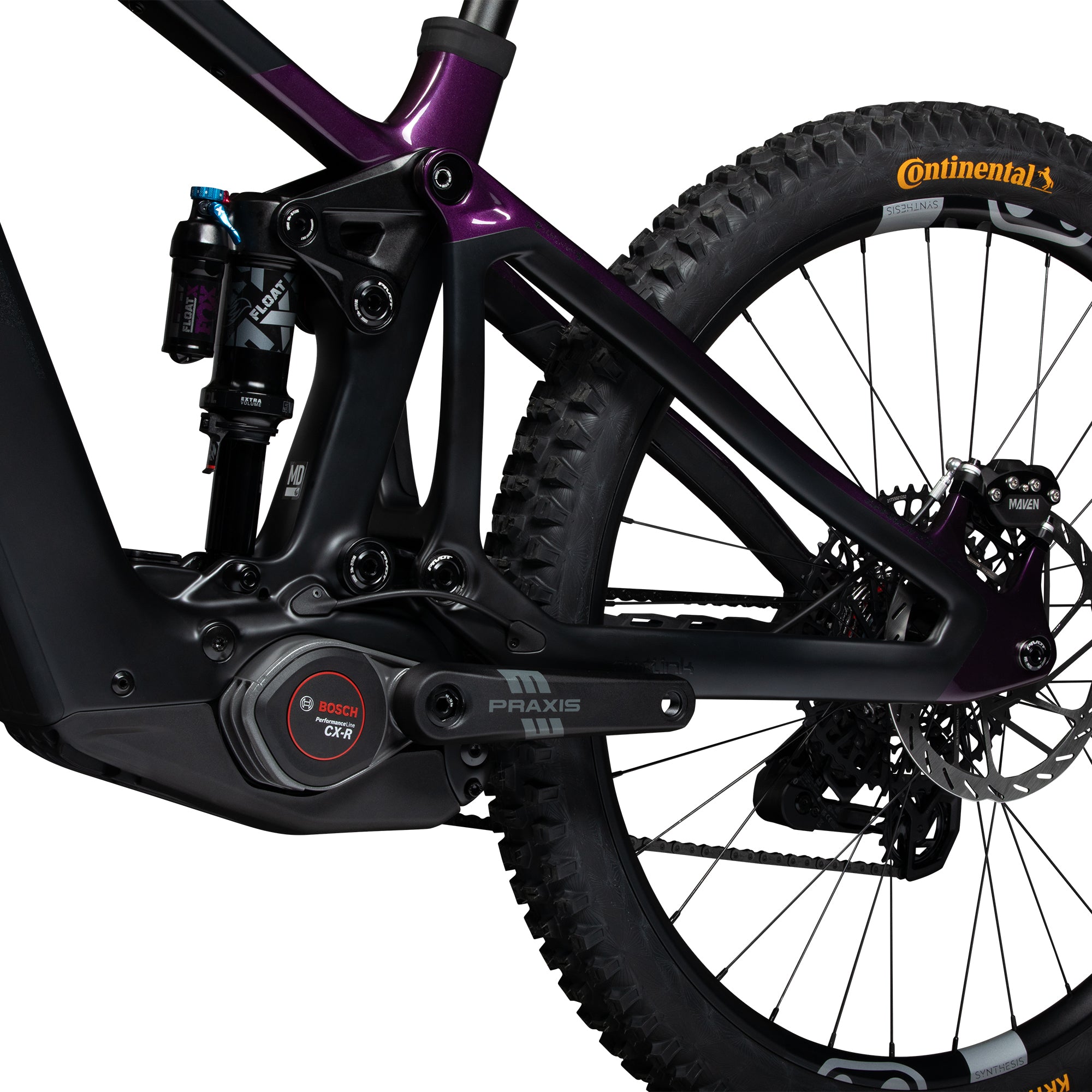

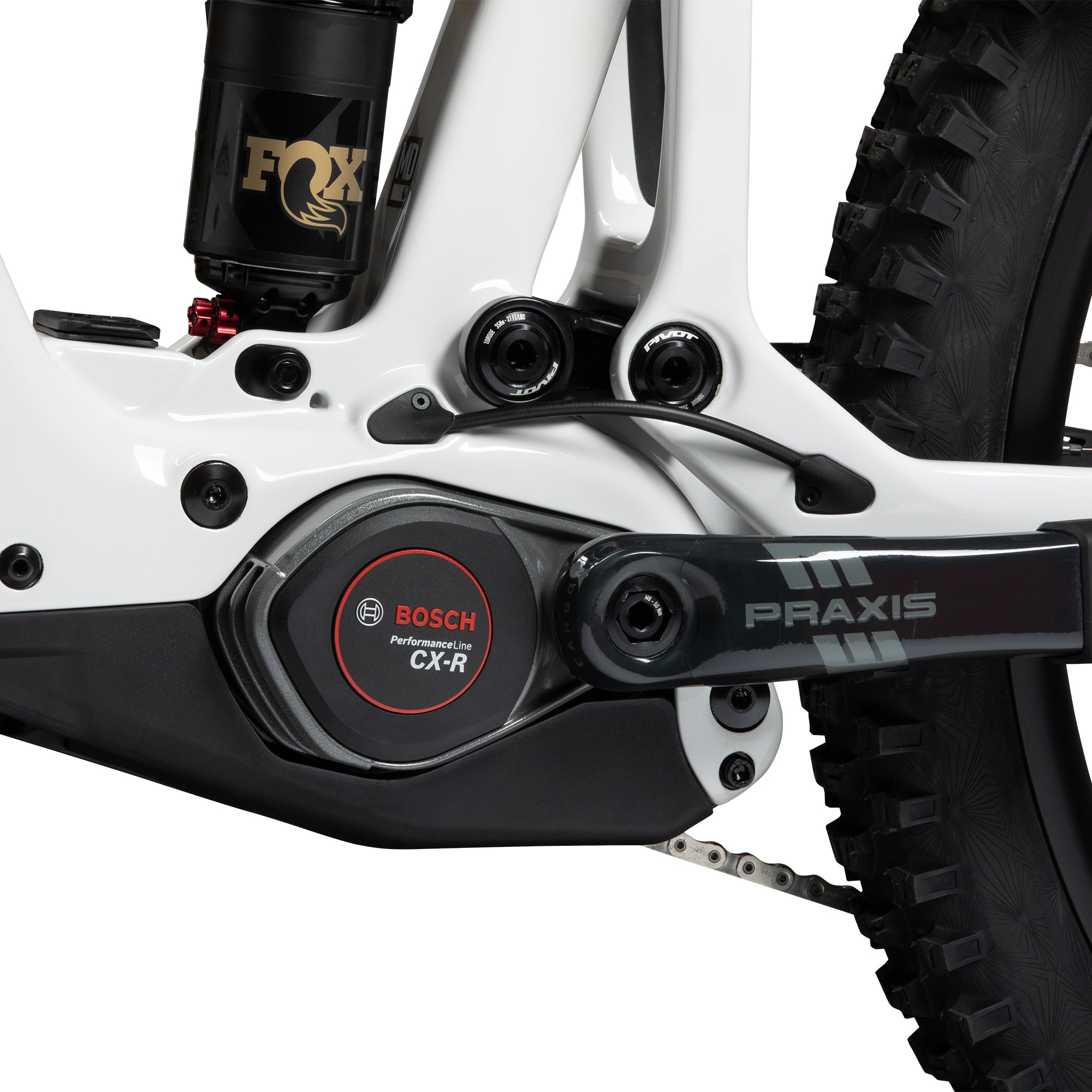

Powered by Bosch’s CX-R System, which delivers 100NM torque and 750W peak power in a ultralight package with a titanium spindle and ceramic bearings. The 800Wh removable battery is 0.4kg lighter than the previous 750Wh version, with a redesigned charging port for faster, simpler access.
From pioneering the category in 2017 with the first Shuttle, Pivot has evolved every detail of eMTB performance, the Suttle LT is the culmination of that journey, blending enduro aggression with Bosch’s most advanced drive system.
Frame specifications
| Travel | F 170mm / R 162mm | 165mm |
| Complete build weight | 23.5kg (Large size - team build) |
| Headset Spec: | ZS56 / ZS56 |
| Rear spacing | 12x157 |
| Drive Unit | Bosch Performance Line CX-R or CX | Max power 750W | Max torque 100Nm |
| Battery Size | 800Wh | Removable |
| Factory Wheel Spec | F 29" / R 27.5" (29" compatible) |
| Max Tyre Clearance | 29" x 2.5" | 27.5" x 2.6" |
Full specifications
| Component | TEAM XX EAGLE TRANSMISSION | PRO X0 EAGLE TRANSMISSION | RIDE 70/90 EAGLE TRANSMISSION |
|---|---|---|---|
| Rear Shock | Fox Factory Float X2 | Fox Performance Elite Float X | Fox Performance Float X |
| Fork | Fox Factory Podium 29”, GRIP X2 - 170mm | Fox Performance Elite Podium 29”, GRIP X2 - 170mm | Fox Performance 38 29”, GRIP - 170mm |
| Headset | Pivot Precision Sealed Cartridge | Pivot Precision Sealed Cartridge | Pivot Precision Sealed Cartridge |

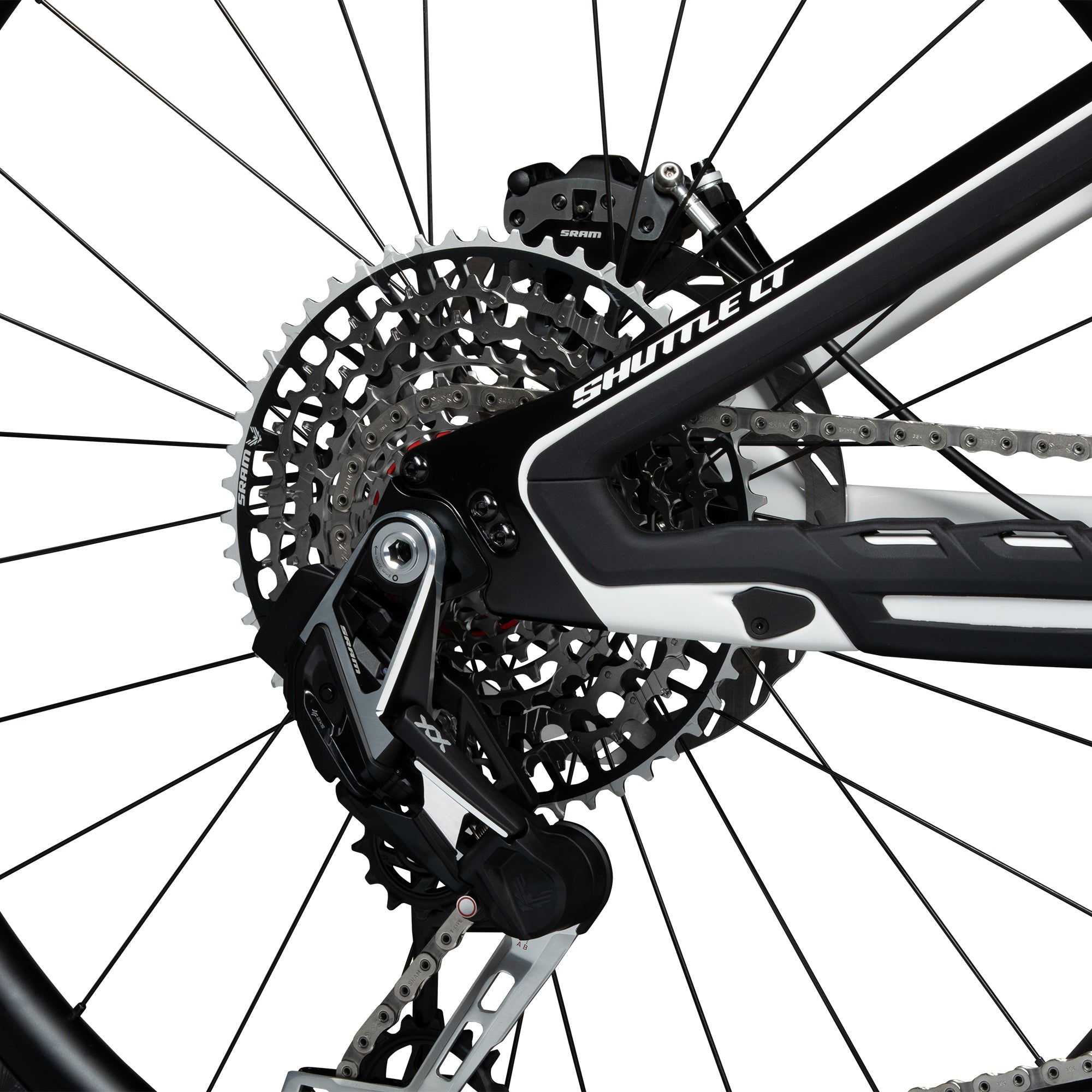

| Rear Derailleur | Sram XX Eagle Transmission 12-Speed | Sram X0 Eagle Transmission 12-Speed | Sram Eagle 90 Mechanical 12-Speed |
| Shifter | Sram AXS Pod Controller | Sram AXS Pod Controller | Sram Eagle 90 Mechanical |
| Cassette | Sram XX 1297 (10-52t) | Sram GX 1275 (10-52t) | Sram XS-1270 (10-52t) |
| Chain | Sram XX Eagle Flattop | Sram X0 Eagle Flattop | Sram Eagle 70 Flattop |
| Crankset | Praxis Carbon eCranks (34t) | Praxis Alloy eCranks (34t) | Praxis Alloy eCranks (34t) |
| Brakes | Sram Maven Ultimate 4-piston | Sram Maven Silver 4-piston | Sram Maven 4-piston |
| Rotors | Sram HS2 (200mm F/R) | Sram HS2 (200mm F/R) | Sram Centerline (200mm F/R) |
| Drive Unit | Bosch Gen 5 CX Race Edition | Bosch Gen 5 CX Race Edition | Bosch Gen 5 Performance Line CX |
| Battery | Bosch PowerTube 800Wh | Bosch PowerTube 800Wh | Bosch PowerTube 800Wh |

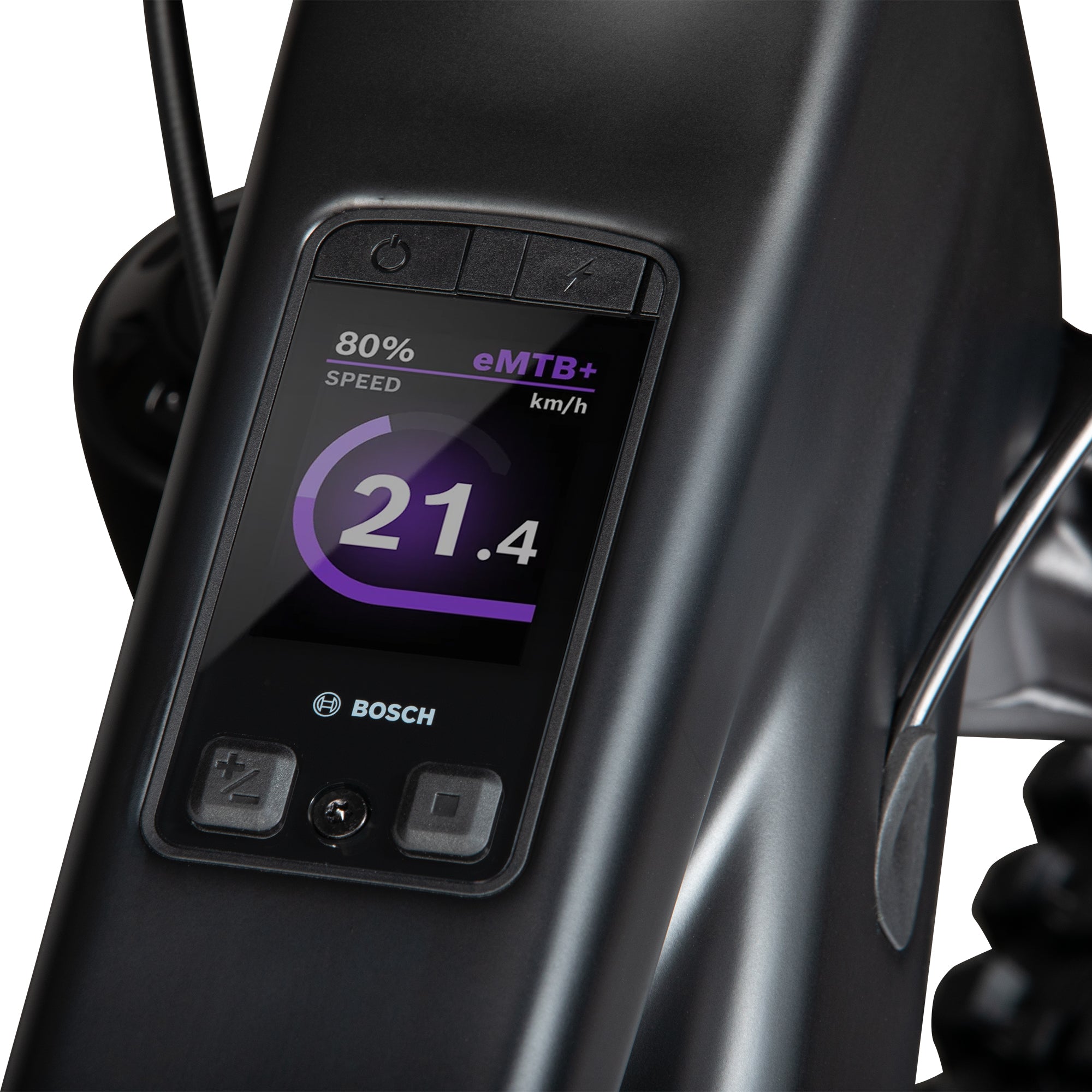

| Display | Bosch Kiox 400C | Bosch Kiox 400C | Bosch System Controller |

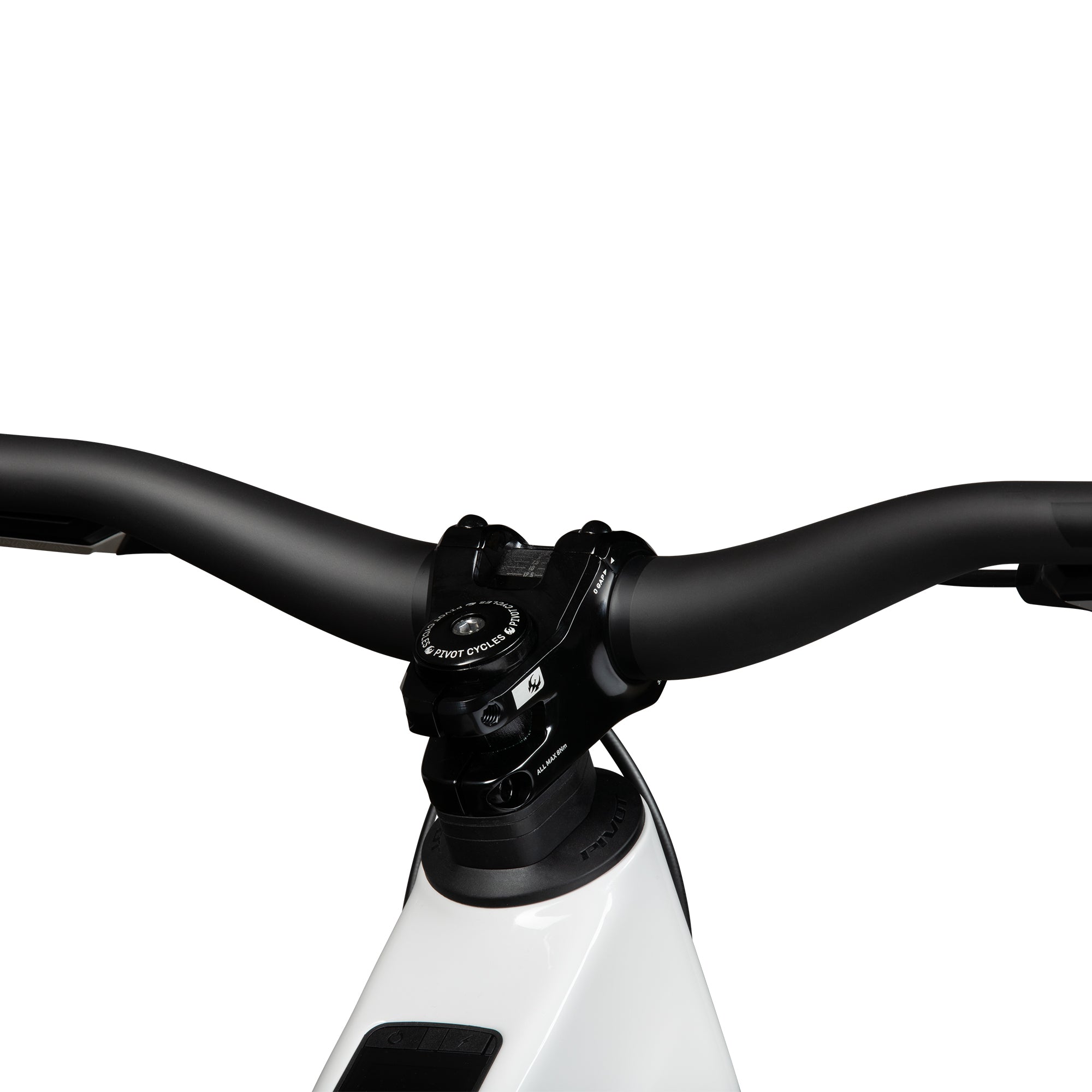

| Handlebar | Phoenix Team Carbon | Phoenix Team Carbon | Phoenix Ride Aluminum |
| Seatpost | RockShox Reverb AXS | OneUp Dropper V3 | JD YSP23GLS |
| Wheels | DT Swiss Hybrid HXC1501 Carbon | Crank Brothers Synthesis DH | DT Swiss H1900 |
