Now packing even more power
Shuttle AM builds come equipped with the Bosch Gen 5 Performance Line drive unit, either the CX or CX-Race versions. The latter weighs 100g less, due to a titanium crank spindle and ceramic bearings, and boasts faster, more aggressive power delivery, especially in Race mode, when there’s more force and a faster pedal response. Both are powered by a light, 800Wh battery that lets you explore further.
Purpose-built E-MTB suspension
The dw-link® suspension found in most Pivot bikes is perfect for all-mountain use, as it provides the ideal amount of anti-squat to make the most of the power from the drive system. The result is an efficient pedalling response, excellent climbing traction and better control on descents. With 150mm of rear travel and 160mm of front, you’ll enjoy a smooth ride over even the roughest trails.
The Bosch x Pivot Flow app for easy control
Whether you want to check your battery’s charge and range or your next service interval, the Bosch x Pivot Flow app lets you do that and more. Customise your ride mode to match your on-trail preferences, update your software, protect your bike from theft and find your nearest dealer, simply by connecting the app with up to six E-Bikes at a time. It will also record your ride data and sync with your favourite routing and training apps.

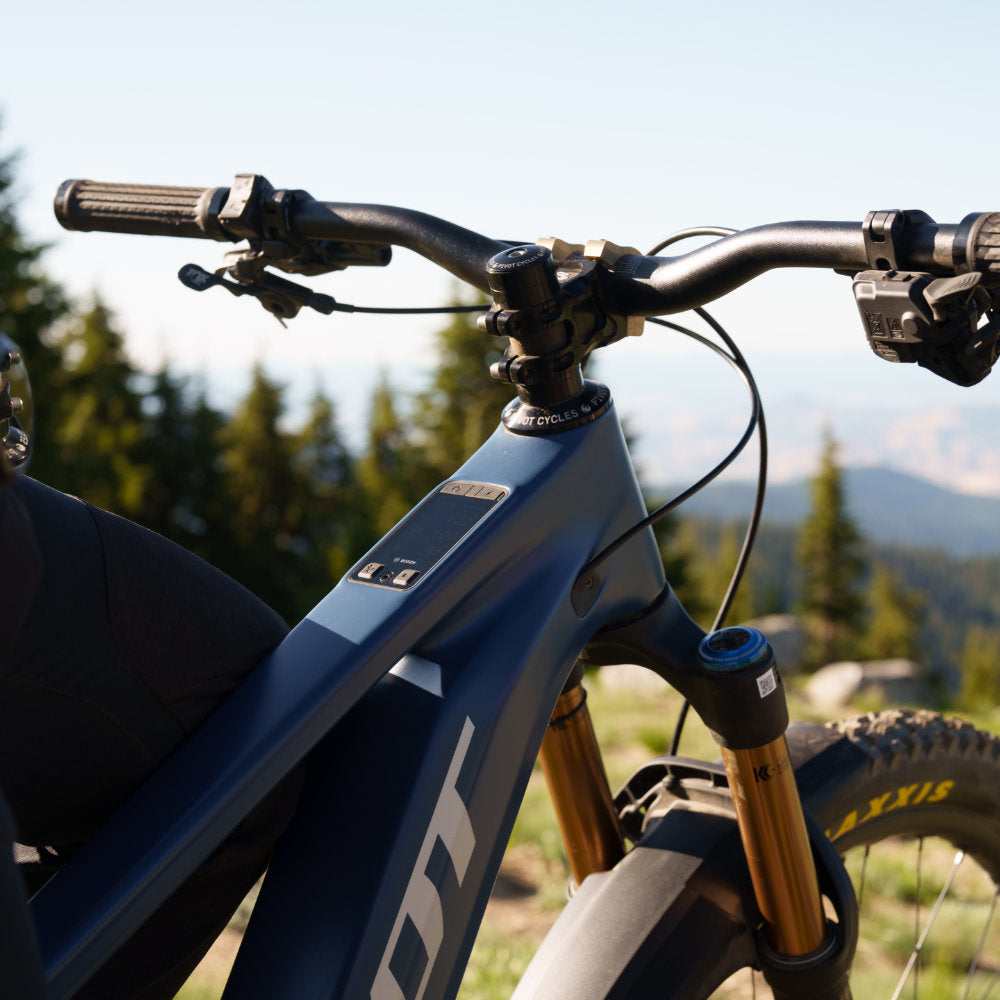

Easier charging and a cleaner cockpit
A new charging port cover design ensures rapid, easy access, as well as flawless compatibility and protection form the elements. It’s also sleek and discreet, fitting in perfectly with the overall look of the bike, with its wireless routing and clean cockpit. The Team and Pro builds, moreover, come with the SRAM wireless shifter and the new larger, brighter Bosch Kiox 400c display, which in conjunction with the app can be used as a navigation system.
Tuneable setup, consistent ride characteristics
The app lets you choose the assistance level, acceleration behaviour, hill climbing ability and maximum speed of each ride mode. The geo flip chip lets you adjust the BB height and head angle, switching between ‘high’, for technical courses and ‘low’ for speed and endurance. Finally, custom-tuned carbon stiffness and independent strength-to-weight analysis ensures riders of all sizes will enjoy the same ride characteristics.
Technical Specifications
| Travel | F 160mm / R 150mm |
|---|---|
| Complete Build Weight | 47.5 lbs / 21.5 kg (Team XX Eagle Transmission Build) |
| Available Sizes | SM, MD, LG, XL |
| Headset Spec | ZS49/56 |
| Rear Spacing | 12x157 |
| Drive Units | Ride: Bosch Performance Line CX | Max Power 750 W | Max Torque 100 Nm Pro & Team: Bosch Performance Line CX-R | Max Power 750 W | Max Torque 100 Nm |
| Battery Size | 800 Wh |
| Loaded Riding Modes | Performance CX: Tour+, EMTB, EMTB+, Turbo CX-R: Tour+, EMTB+, Turbo, Race |
| Factory Wheel Spec | 29” Front & Rear |
| Max Tire Clearance | 29”x 2.5” | 27.5” x 2.6” |
| Build | Team XX Eagle Transmission | Pro X0 Eagle Transmission | Ride Eagle 70/90 |
|---|---|---|---|
| Frame | Shuttle AM Full Carbon frame | Shuttle AM Full Carbon frame | Shuttle AM Carbon FT/Alloy RT |
| Rear Shock | Fox Factory Float X | RockShox Super Deluxe Ultimate | RockShox Super Deluxe Select |
| Fork | Fox Factory 36 29”, 44mm offset, GRIP X2 - 160mm | RockShox Zeb Ultimate 29”, 44mm offset, 160mm | RockShox Lyrik Select+ 29”, 44mm offset, 160mm |
| Headset | Pivot Precision Sealed Cartridge | Pivot Precision Sealed Cartridge | Pivot Precision Sealed Cartridge |
| Rear Derailleur | Sram XX Eagle Transmission 12-Speed | Sram X0 Eagle Transmission 12-Speed | Sram Eagle 90 Mechanical Transmission 12-Speed |
| Shifter | Sram AXS Pod Controller | Sram AXS Pod Controller | Sram Eagle 70 Mechanical Transmission 12-Speed - Single Click |
| Cassette | Sram XS-1270 Eagle Transmission 10-52t | Sram X0 1295 Eagle Transmission 10-52t | Sram XS-1270 Eagle Transmission 10-52t |
| Chain | Sram XX Eagle Flattop 12-Speed | Sram X0 Eagle Flattop 12-Speed | Sram Eagle 70 Flattop 12-Speed |
| Crankset | Sram XX 1297 Eagle Transmission 10-52t | Praxis Alloy eCranks E-MTB 34t - 160mm | FSA CK-220/IS Armset 34t - 160mm |
| Brakes | Sram Maven Ultimate 4-piston | Sram Maven Silver 4-piston | Sram DB8 Stealth 4-piston |
| Rotors | F - Sram HS2 Centerlock - 200mm | R - Sram HS2 Centerlock - 200mm | F - Sram HS2 Centerlock - 200mm | R - Sram HS2 Centerlock - 200mm | F - Sram Centerline Centerlock - 200mm | R - Sram Centerline Centerlock - 200mm |
| Drive Unit | Bosch Gen 5 Performance Line CX Race Edition 800Wh | Bosch Gen 5 Performance Line CX Race Edition 800Wh | Bosch Gen 5 Performance Line CX 800Wh |
| Display | Bosch Kiox 400C w/ Mini Remote | Bosch Kiox 400C w/ Mini Remote | Bosch System Controller w/ Mini Remote |
| Handlebar | Phoenix Race Low Rise Carbon | Phoenix Race Low Rise Carbon | Phoenix Race Low Rise Aluminum |
| Grips | Phoenix Factory Lock-On | Phoenix Factory Lock-On | Phoenix Factory Lock-On |
| Stem | Phoenix Team Enduro/Trail | Phoenix Team Enduro/Trail | Phoenix Team Enduro/Trail |
| Seatpost | OneUp Dropper V3 150mm (SM), 180mm (MD), 210mm (LG-XL) | OneUp Dropper V3 150mm (SM), 180mm (MD), 210mm (LG-XL) | JD YSP23GLS, 130-150mm (SM), 150-170mm (MD), 180-200mm (LG-XL) |
| Saddle | Pivot Ride E-Bike | Pivot Ride E-Bike | Pivot Ride E-Bike |
| Wheels | DT Swiss HXC1501 w/ DT Swiss 350 hub & 36t Star Ratchet 30mm - 29” | F - 15x110 / R - 12x157 | DT Swiss HX1501 w/ DT Swiss 350 hub & 36t Star Ratchet 30mm - 29” | F - 15x110 / R - 12x157 | DT Swiss E532, 30mm - 29” | F - 15x110 / R - 12x157 |
| Tires | F - Maxxis Minion DHF 29” x 2.5” WT, TR, 3C, EXO+, MAXXTERRA | R - Maxxis Minion DHRII 29” x 2.4” WT, TR, 3C, EXO+, MAXXTERRA | F - Maxxis Minion DHF 29” x 2.5” WT, TR, 3C, EXO+, MAXXTERRA | R - Maxxis Minion DHRII 29” x 2.4” WT, TR, 3C, EXO+, MAXXTERRA | F - Maxxis Minion DHF 29” x 2.5” WT, TR, 3C, EXO+, MAXXTERRA | R - Maxxis Minion DHRII 29” x 2.4” WT, TR, 3C, EXO+, MAXXTERRA |
| Sizes | SM | MD | LG | XL | SM | MD | LG | XL | SM | MD | LG | XL |
