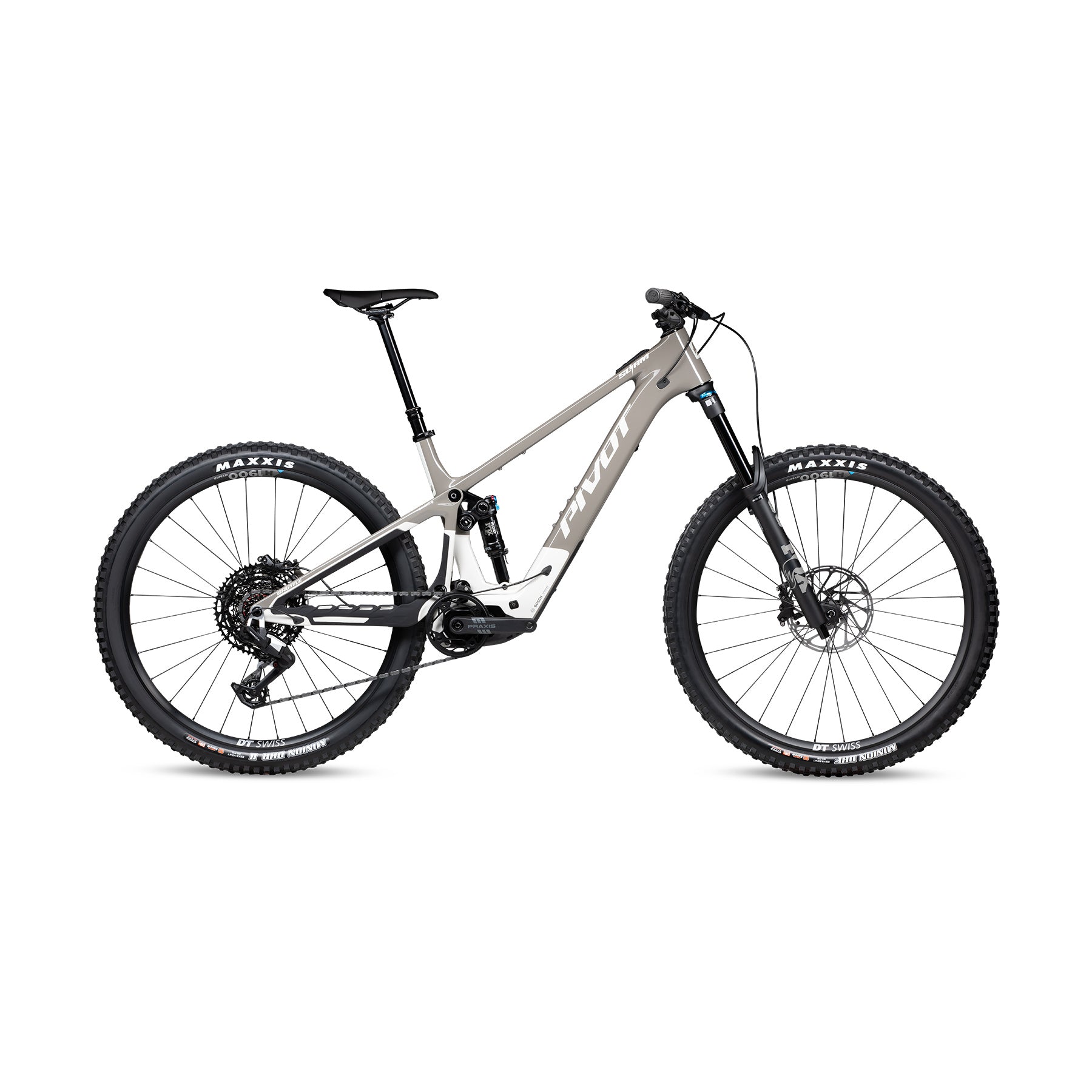

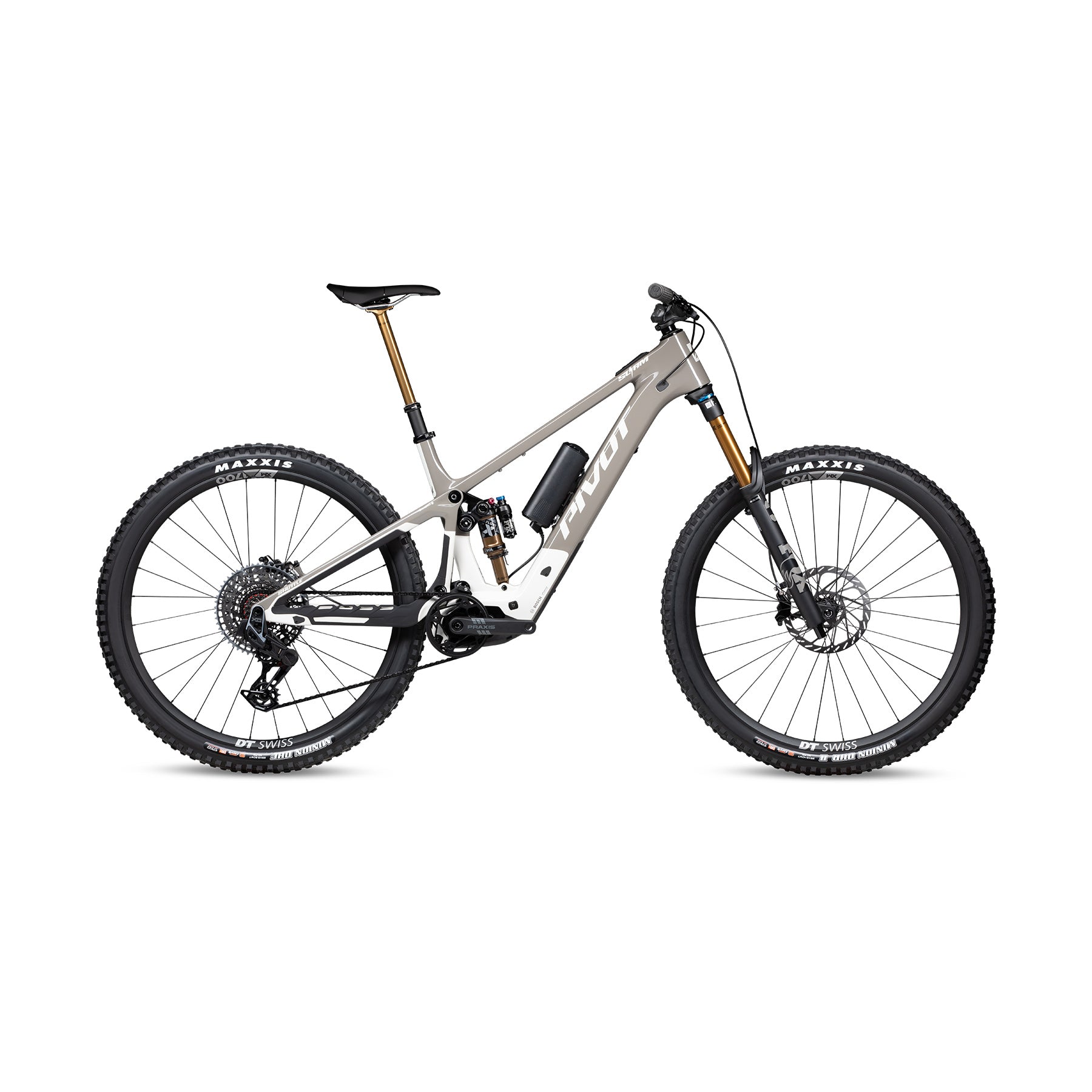

Pivot Cycles Shuttle SL/AM
Overview
Light, sleek and super powerful, the Shuttle SL/AM offers the best of both worlds, the handling and feel of a traditional MTB, with the extra boost of an E-MTB to let you go harder, faster and for longer every time you ride. Agile and precise, it delivers traction, power and pedalling efficiency on climbs, alongside descending speed, control and smoothness.
For riders who are always raring to fit in one last lap or explore just a bit further.
Product information
You have 30 days to return your item from when it reaches you
If you wish to return a product under warranty, please see our Saddleback Warranty Information page for more information.
- Free standard delivery (3-5 working days) on orders over £60.
- Standard delivery (3-5 working days) on orders under £60 - £3.50
- Express delivery (1-2 working days) £4.99
For more information on delivery times and prices click here.
Power to keep going

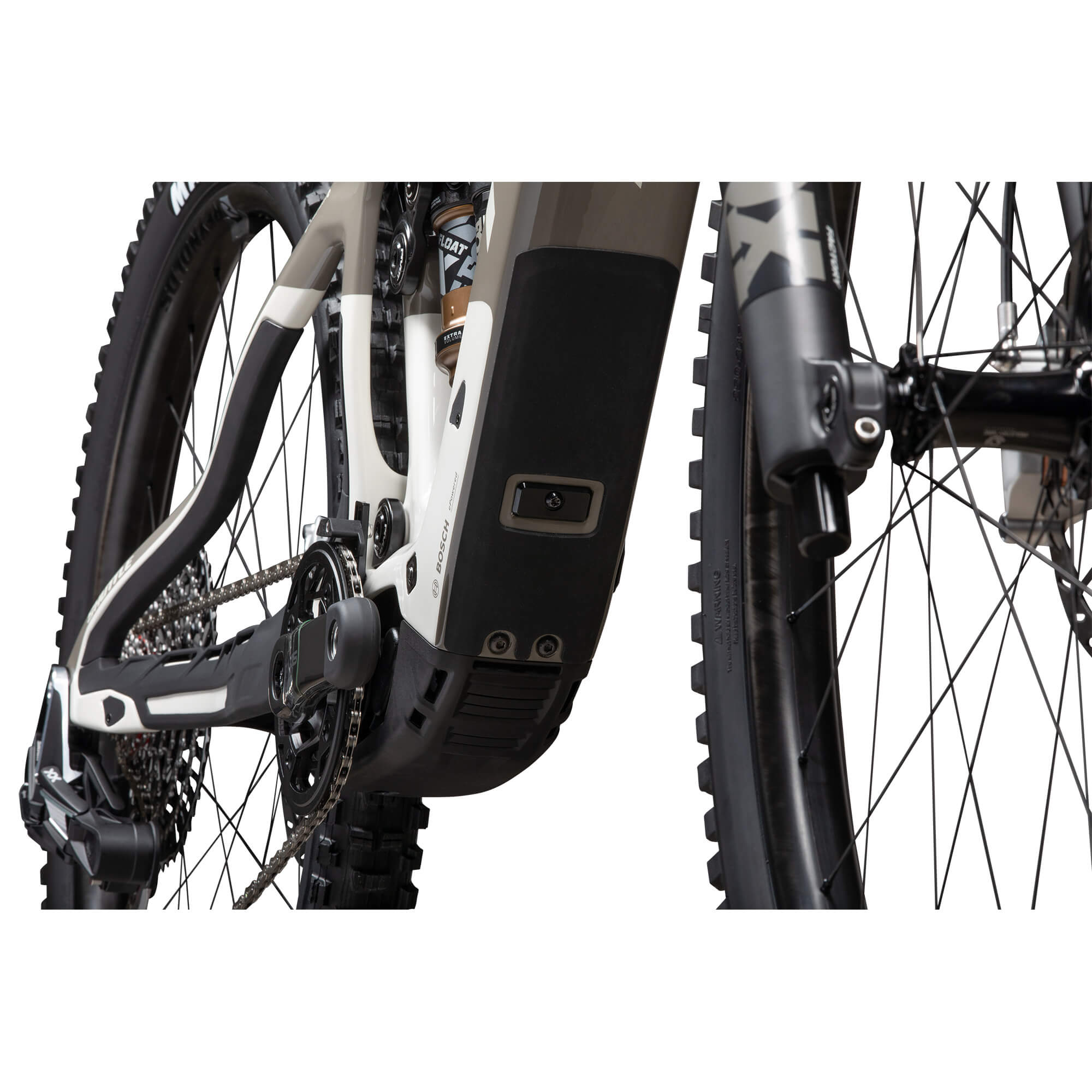

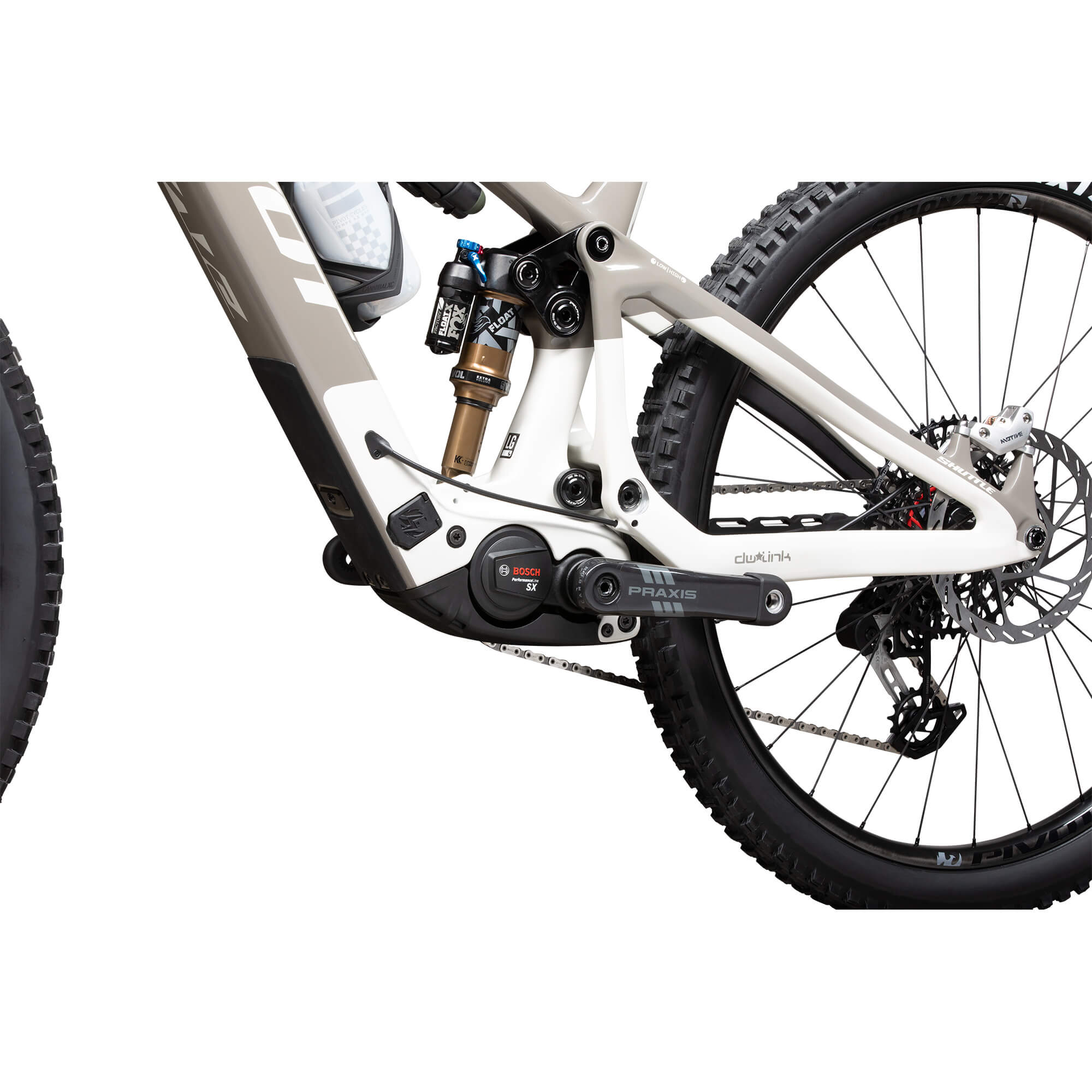

Fuelled by the Bosch Performance Line SX drive system, the Shuttle SL/AM packs the power of a demon climber and gives you the energy you need to ride all day, without compromising on handling and weight. The 600 watts of peak power, with 55Nm of torque, feels natural, so you'll forget you're riding an E-MTB until you're halfway up the hill, while the 400Wh battery is hidden within the frame.
The travel to stomp descents

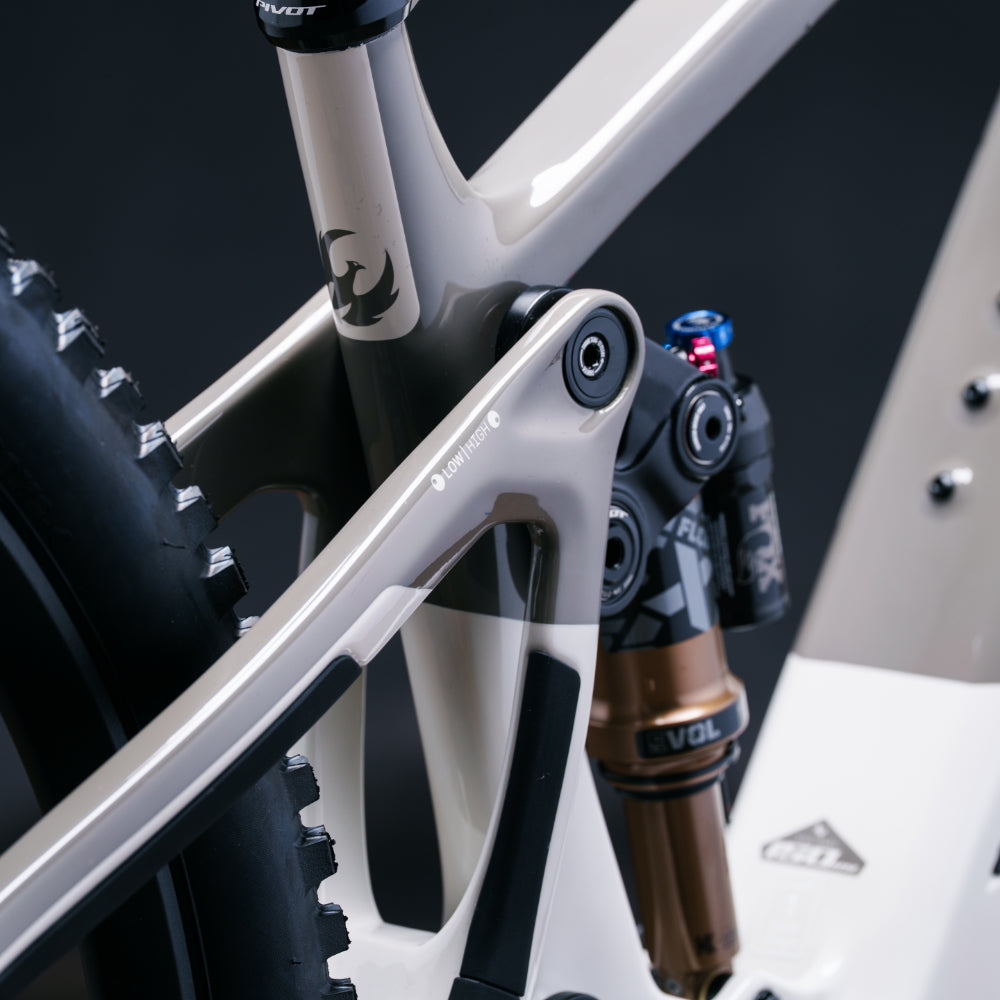

A generous 160mm of front travel and 150mm at the rear is delivered by Fox, with Pivot's dw-link® providing just the right amount of anti-squat to optimise pedalling efficiency and traction. This all-mountain E-Bike is therefore at home tackling technical lines and powering through rock-strewn trails.
A perfect ride, whatever your size
Pivot's proprietary Hollow Core Carbon moulding process means that, no matter what size frame you choose, you'll enjoy the same benefits on a bike that is stiff, lively enough that you'll forget it's an E-MTB and weighs under 18kg. Pivot uses independent strength to weight analysis to guarantee ride consistency in all frame sizes, including the unique XS size, with MX setup, for riders as small as 4′11″.
Adjustable geometry to suit your style

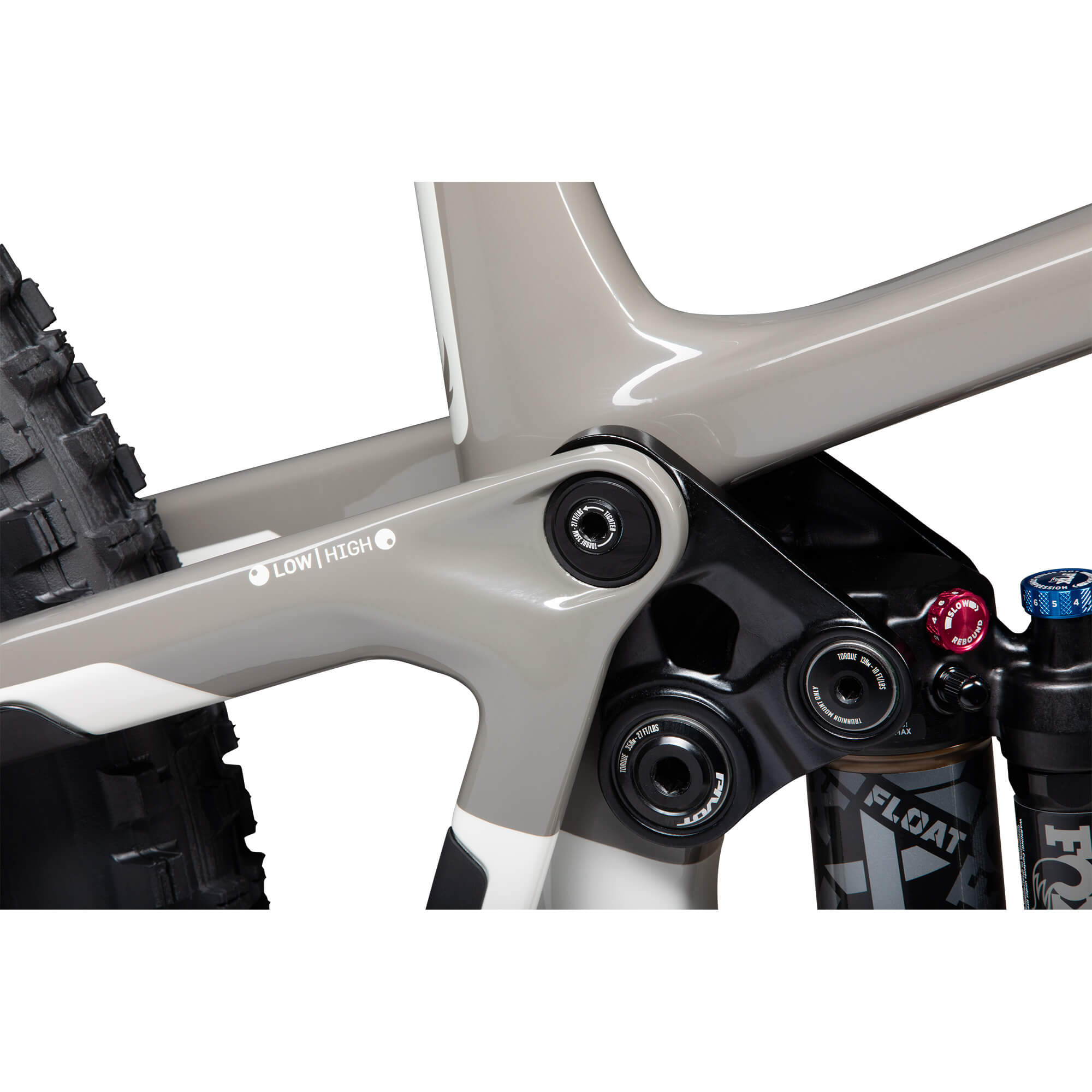

The Pivot Flip Chip lets you raise your bottom bracket, steepen the head angle and use a mixed wheel setup if desired, regardless of frame size, when you're planning to tackle rough or technical trails and prioritise agility, responsiveness and control on climbs. However, if you want descending stability, reliable pedal clearance and the confidence only 29ers can give, the low setting will appeal.

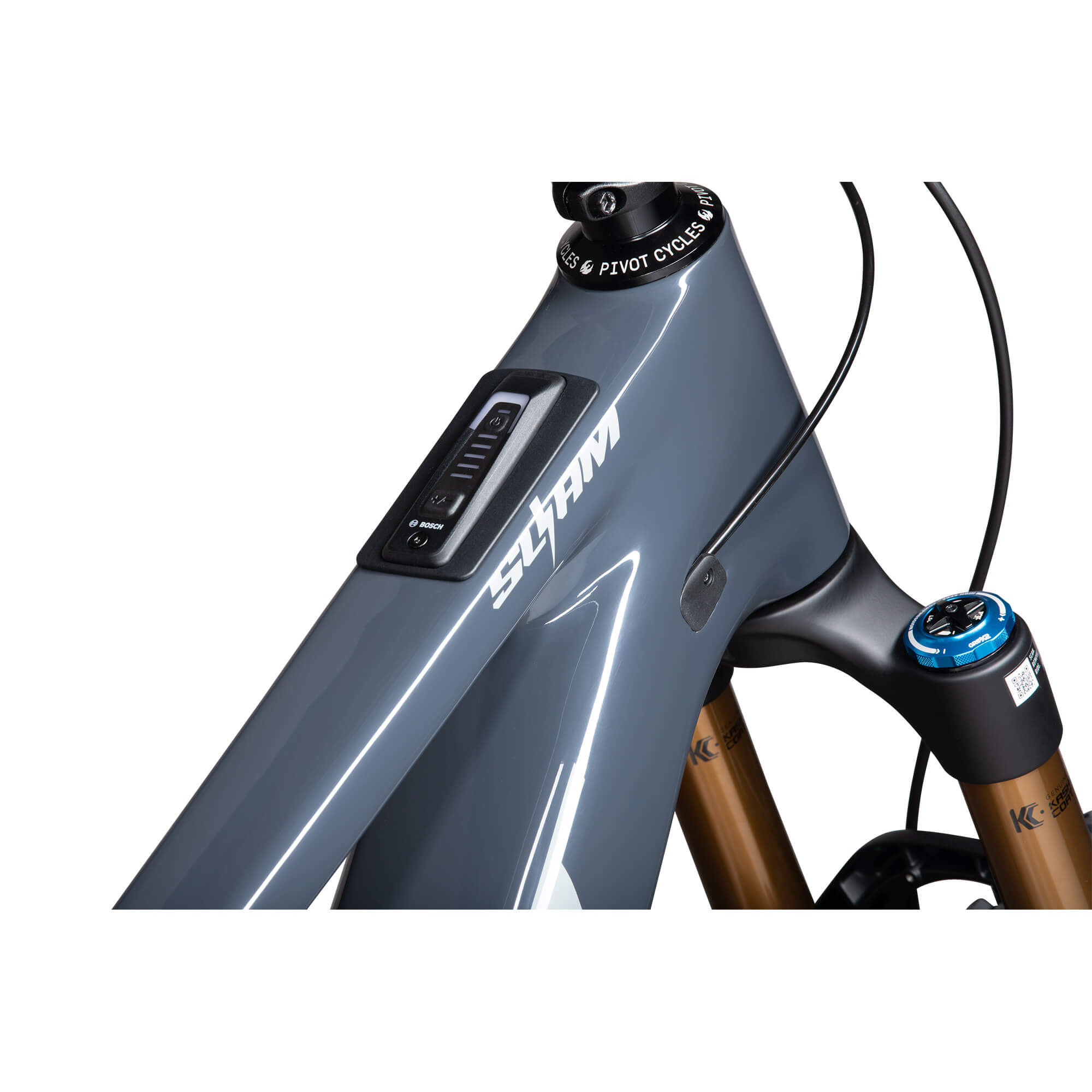

Sleek charging and cockpit integration

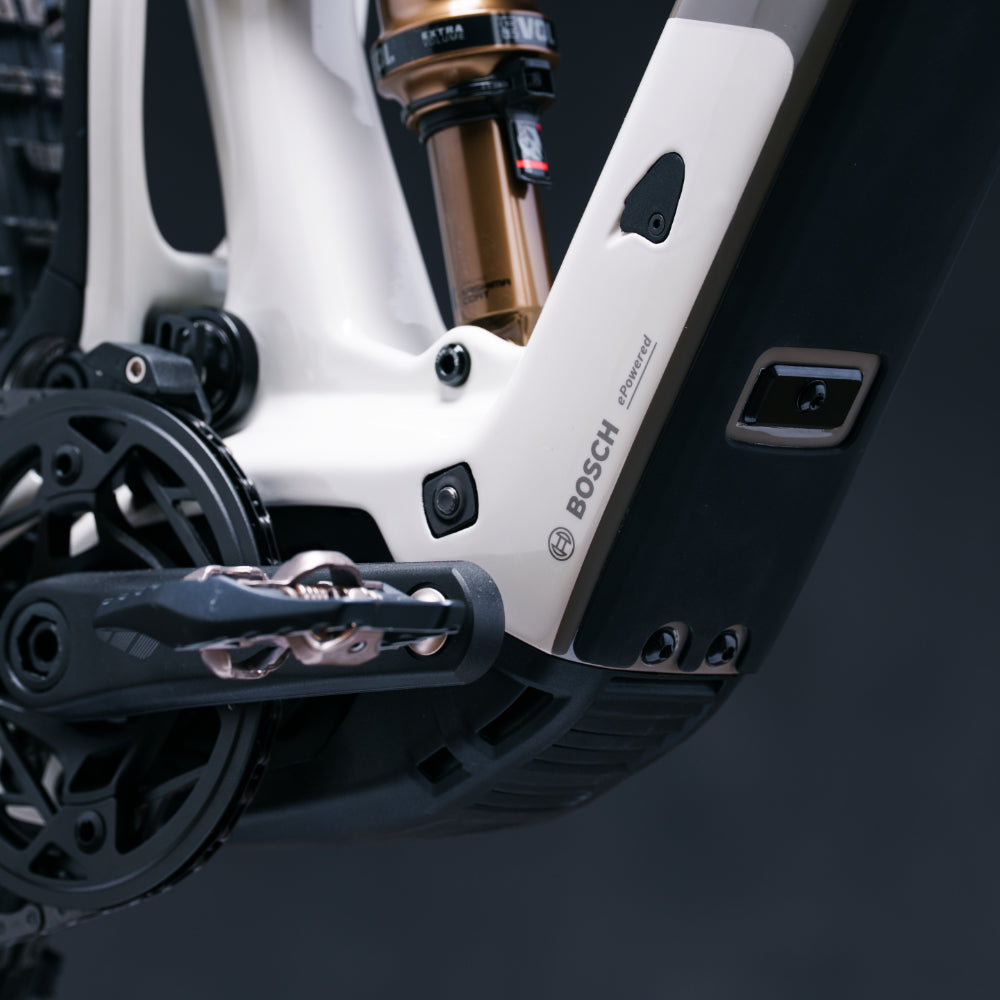

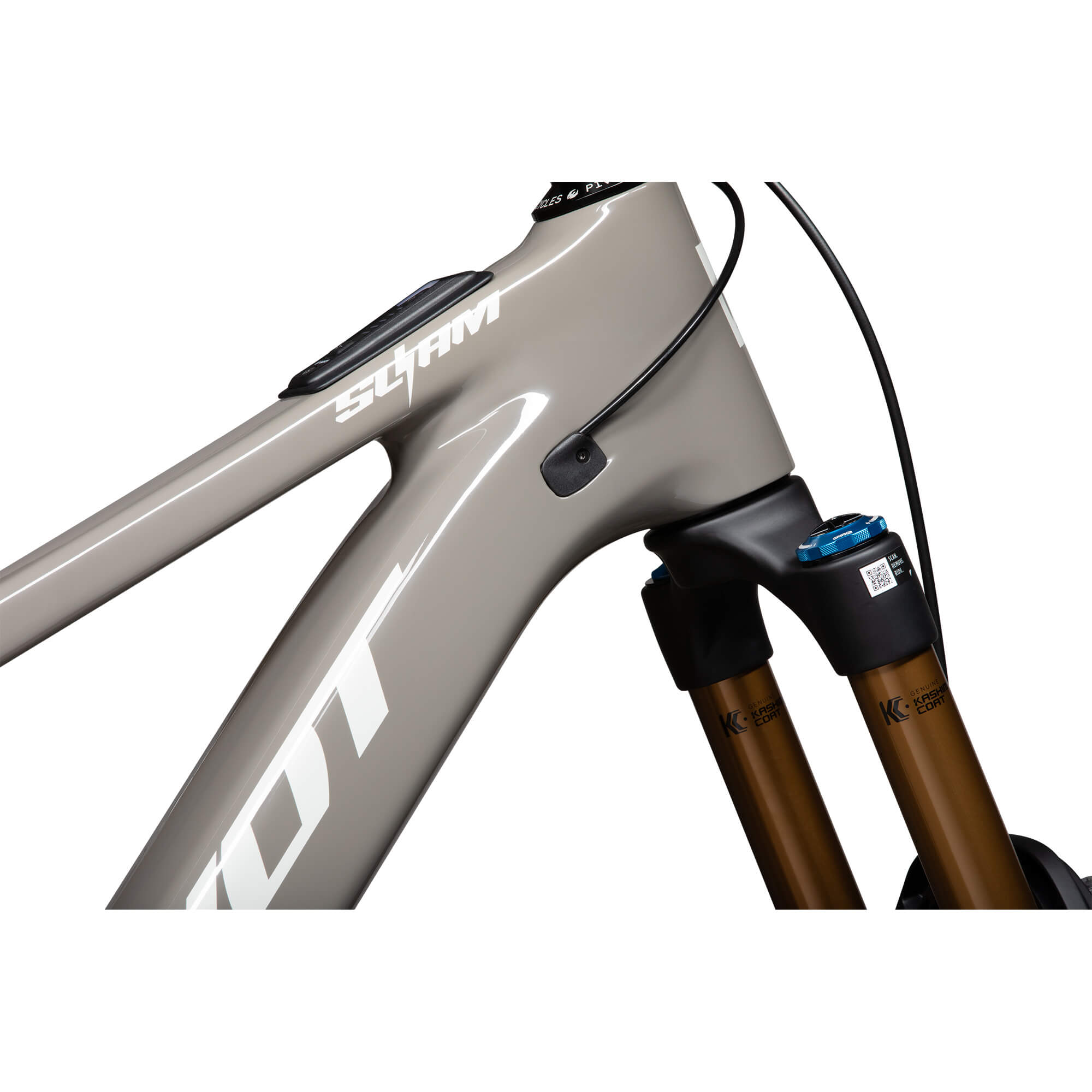

The Shuttle SL/AM features a new charging port, with a protective cover integrated into the frame that's accessible and removable to accommodate the optional Bosch PowerMore 250 Range Extender, a compact additional battery for your longest rides. It also includes a new dual cable port, with a larger opening for routing two hoses and enhanced setup versatility, as well as a clean cockpit.
Technical Specifications
| Component | Team XX Eagle Transmission | Pro XO Eagle Transmission | Ride Eagle 70/90 |
|---|---|---|---|
| Rear Shock | Fox Factory Float(XS), Fox Factory Float X(SM-XL) | Fox Factory Float(XS), Fox Factory Float X(SM-XL) | Fox Performance Float |
| Fork | Fox Factory 36 29”, 44mm offset, GRIP X2 - 160mm | Fox Factory 36 29”, 44mm offset, GRIP X2 - 160mm | Fox Performance 36 29”, 44mm offset, GRIP - 160mm |
| Headset | Pivot Precision Sealed Cartridge | Pivot Precision Sealed Cartridge | Pivot Precision Sealed Cartridge |
| Rear Derailleur | SRAM XX Eagle Transmission 12-Speed | SRAM X0 Eagle Transmission 12-Speed | SRAM Eagle 90 Mechanical Transmission 12-Speed |

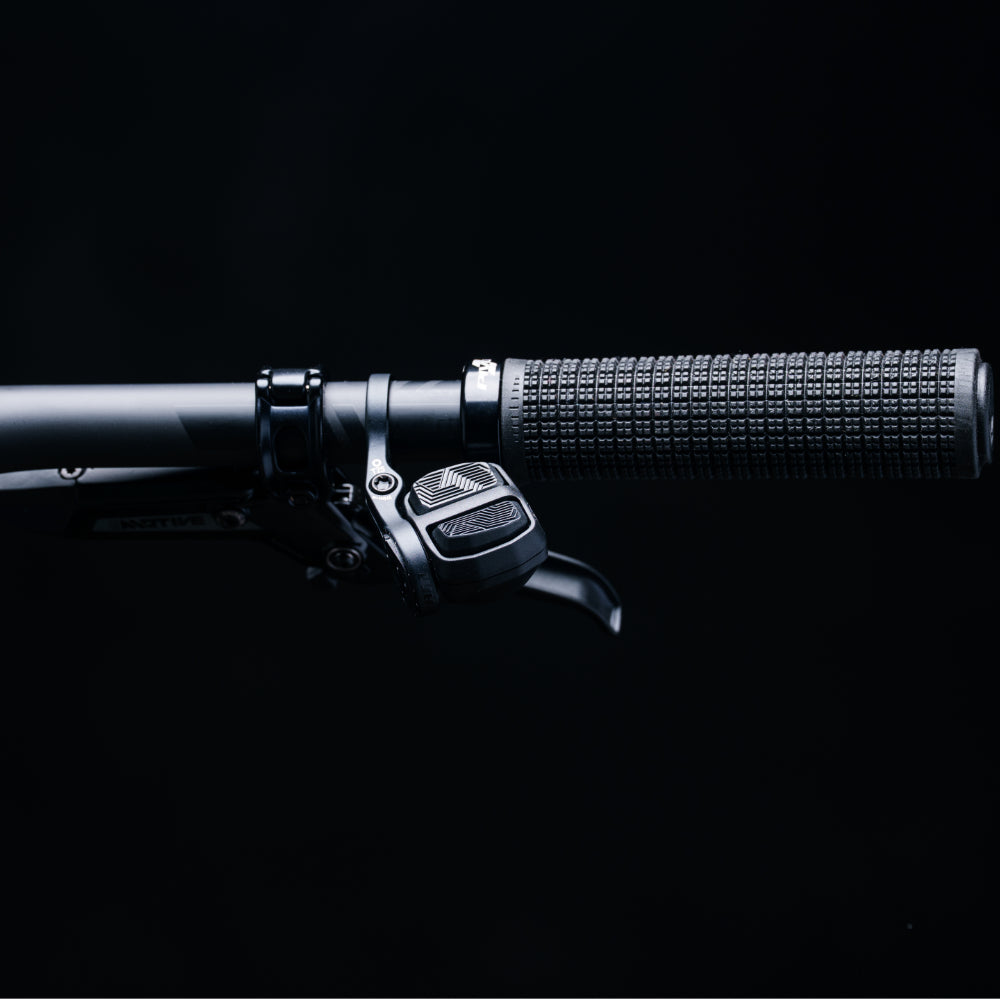

| Shifter | SRAM AXS Pod Controller | SRAM AXS Pod Controller | SRAM Eagle 90 Mechanical Transmission 12-Speed - Single Click |

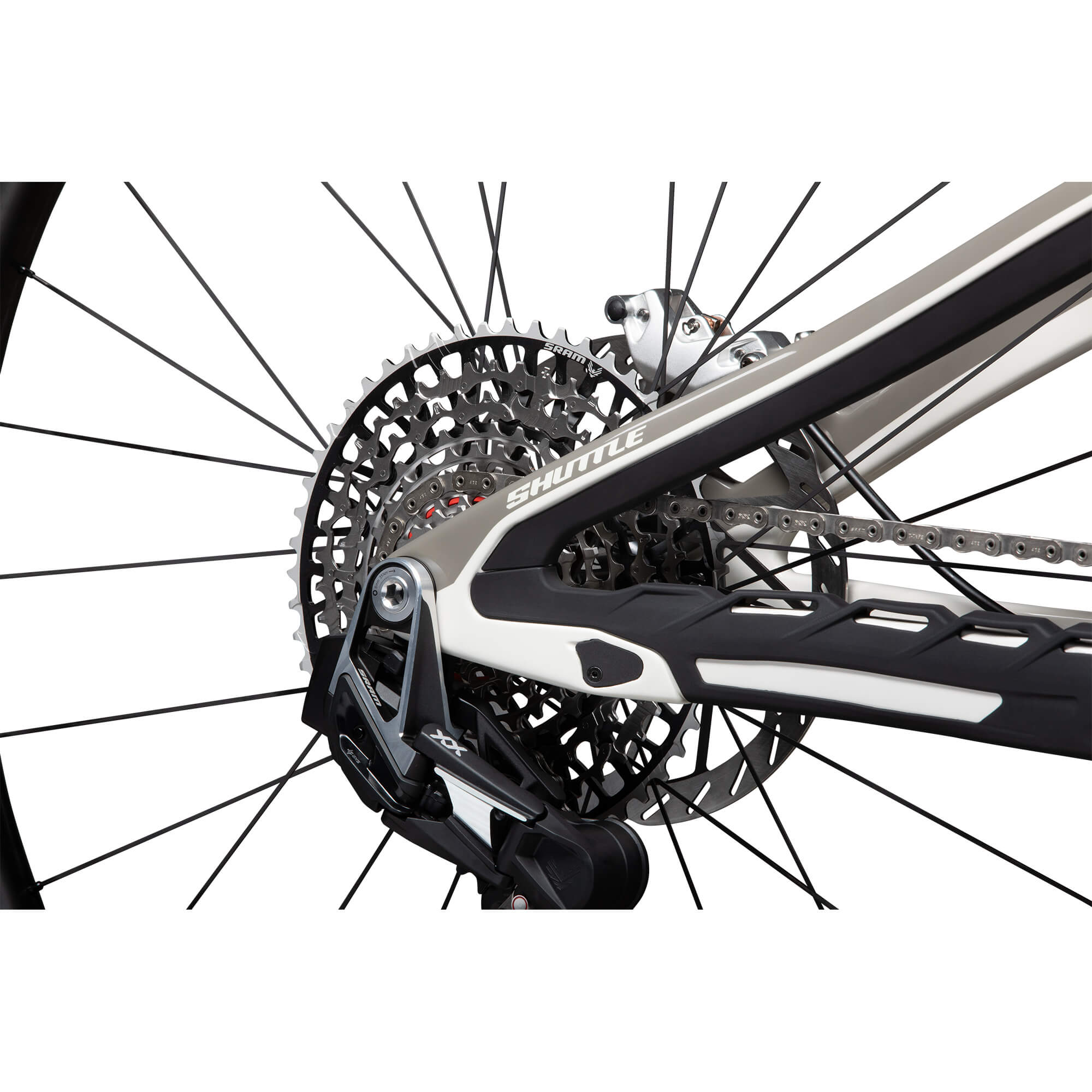

| Cassette | SRAM XX 1297 Eagle Transmission 10-52t | SRAM X0 1295 Eagle Transmission 10-52t | SRAM XS-1270 Eagle Transmission 10-52t |
| Chain | SRAM XX Eagle Flattop 12-Speed | SRAM X0 Eagle Flattop 12-Speed | SRAM Eagle 70 Flattop 12-Speed |
| Crankset | Praxis Carbon eCranks E-MTB 34t - 160mm | Praxis Alloy eCranks E-MTB 34t - 160mm | Praxis Alloy eCranks E-MTB 34t - 160mm |

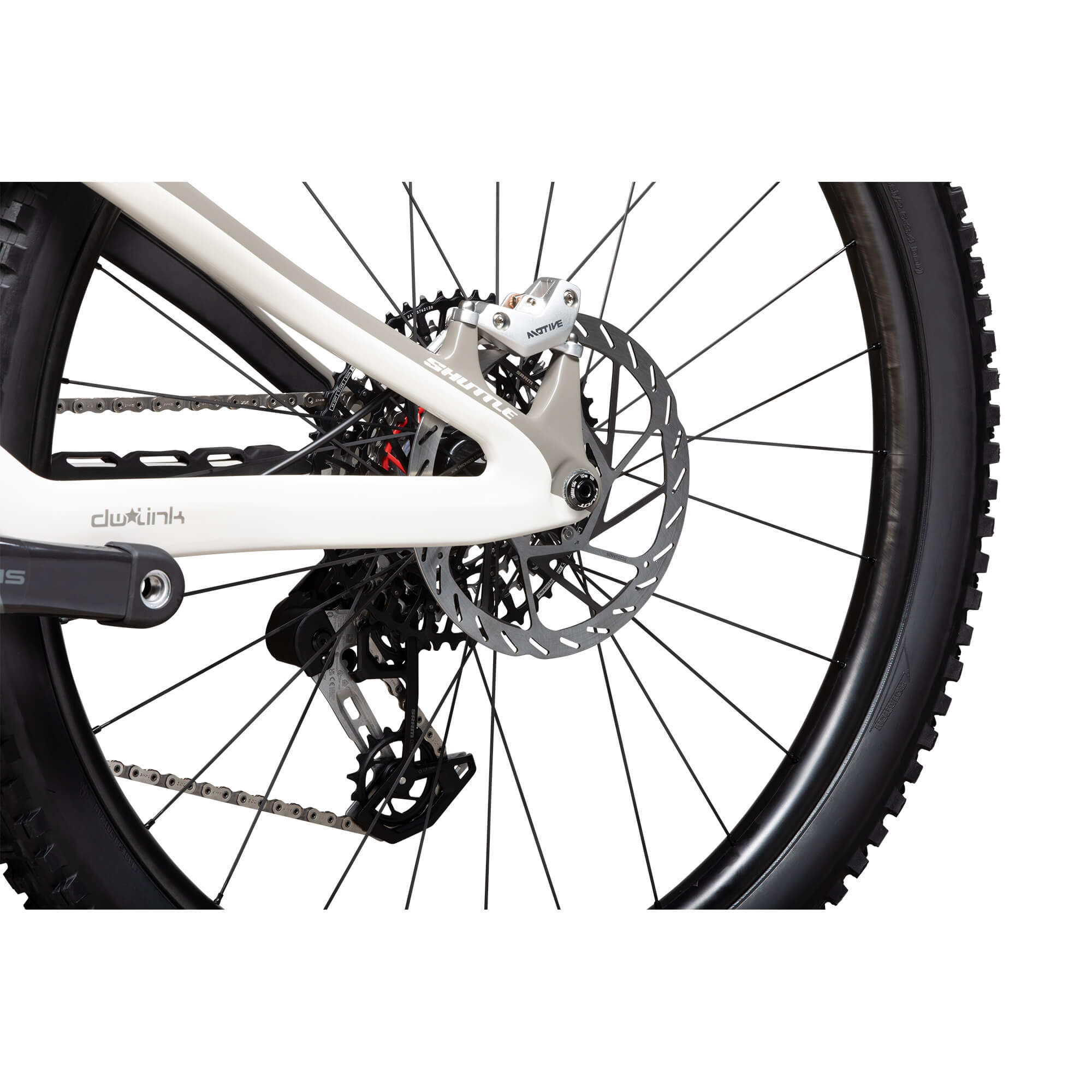

| Brakes | SRAM Motive Ultimate 4-piston | SRAM Motive Silver 4-piston | SRAM DB8 Stealth 4-piston |
| Rotors | F - SRAM HS2 Centerlock - 200mm | R - SRAM HS2 Centerlock - 200mm | F - SRAM HS2 Centerlock - 200mm | R - SRAM HS2 Centerlock - 200mm | F - SRAM Centerline Centerlock - 200mm | R - SRAM Centerline Centerlock - 200mm |
| Drive Unit | Bosch Performance SX 400Wh | Bosch Performance SX 400Wh | Bosch Performance SX 400Wh |
| Handlebar | Phoenix Race Low Rise Carbon -760mm (XS), 780mm (SM-MD), 800mm (LG-XL) | Phoenix Race Low Rise Carbon -760mm (XS), 780mm (SM-MD), 800mm (LG-XL) | Phoenix Race Low Rise Aluminum - 780mm (XS-MD), 800mm (LG-XL) |
| Grips | Phoenix Factory Lock-On | Phoenix Factory Lock-On | Phoenix Factory Lock-On |
| Stem | Phoenix Team Enduro/Trail - 45mm | Phoenix Team Enduro/Trail - 45mm | Phoenix Team Enduro/Trail - 45mm |
| Seatpost | Fox Transfer Factory Series 1 25-150mm (XS-SM), 155-180mm (MD), 1 85-210mm (LG-XL) | Fox Transfer Factory Series 1 25-150mm (XS-SM), 155-180mm (MD), 1 85-210mm (LG-XL) | TranzX YSP23GLS, 130-150mm (XS-SM), 150-170mm (MD), 180-200mm (LG-XL) |
| Saddle | Phoenix WTB Team High Tail Trail (SM), Phoenix RaceGrip Team Saddle (XS, MD-XL) | Phoenix WTB Pro High Tail Trail (SM), Phoenix RaceGrip Pro Saddle (XS, MD-XL) | Phoenix WTB Race High Tail Trail (SM), Phoenix RaceGrip Ride Saddle (XS, MD-XL) |
| Wheel Size | XS (Mixed Wheel only), SM-XL (29”) | XS (Mixed Wheel only), SM-XL (29”) | XS (Mixed Wheel only), SM-XL (29”) |
| Wheels | Reynolds Blacklabel Trail Pro w/ Industry Nine hub, 32mm | F - 15x110 / R - 12x157 | XS (Mixed Wheel only), SM-XL (29” only) | DT Swiss XM1700 w/ DT Swiss 350 hub & 36t Star Ratchet 30mm | F - 15x110 / R - 12x157 | XS (Mixed Wheel only), SM-XL (29” only) | DT Swiss Hybrid H1900, 30mm | F - 15x110 / R - 12x157 | XS (Mixed Wheel only), SM-XL (29” only) |
| Tyres | F - Maxxis Minion DHF 29” x 2.5” WT, TR, 3C, EXO+, MAXXTERRA | R - Maxxis Minion DHRII 29” x 2.4” WT, TR, 3C, EXO+, MAXXTERRA | F - Maxxis Minion DHF 29” x 2.5” WT, TR, 3C, EXO+, MAXXTERRA | R - Maxxis Minion DHRII 29” x 2.4” WT, TR, 3C, EXO+, MAXXTERRA | F - Maxxis Minion DHF 29” x 2.5” WT, TR, 3C, EXO+, MAXXTERRA | R - Maxxis Minion DHRII 29” x 2.4” WT, TR, 3C, EXO+, MAXXTERRA |
Geometry
| Low | Sizes | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|---|
| A | Seat Tube length | 34.3 | 37.8 | 39.9 | 43.2 | 47 |
| B | Top Tube length (eff.) | 57.4 | 60.3 | 63.1 | 64.8 | 67 |
| C | Head Tube length | 9.5 | 11 | 12 | 13 | 14 |
| D | Head Tube angle | 64.1 | 64.1 | 64.1 | 64.1 | 64.1 |
| E | Seat Tube angle (eff.) | 76.5 | 76.5 | 76.5 | 76.5 | 76.5 |
| F | Chain Stay length | 44.4 | 44.4 | 44.4 | 44.4 | 44.4 |
| G | Bottom Bracket height | 34.5 | 34.5 | 34.5 | 34.5 | 34.5 |
| H | Bottom Bracket drop | 2.3 | 2.9 | 2.9 | 2.9 | 2.9 |
| I | Standover height | 64.8 | 66.5 | 67.4 | 67.4 | 68.5 |
| J | Wheelbase | 118.9 | 121.9 | 124.8 | 126.7 | 129.2 |
| Reach | 42 | 43.6 | 46.1 | 47.6 | 49.6 | |
| Stack | 61 | 63 | 63.9 | 64.8 | 65.7 |
| High | Sizes | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|---|
| A | Seat Tube length | 34.3 | 37.8 | 39.9 | 43.2 | 47 |
| B | Top Tube length (eff.) | 57.3 | 60.2 | 63 | 64.7 | 66.9 |
| C | Head Tube length | 9.5 | 11 | 12 | 13 | 14 |
| D | Head Tube angle | 64.5 | 64.5 | 64.5 | 64.5 | 64.5 |
| E | Seat Tube angle (eff.) | 76.9 | 76.9 | 76.9 | 76.9 | 76.9 |
| F | Chain Stay length | 44.4 | 44.4 | 44.4 | 44.4 | 44.4 |
| G | Bottom Bracket height | 35 | 35 | 35 | 35 | 35 |
| H | Bottom Bracket drop | 1.8 | 2.4 | 2.4 | 2.4 | 2.4 |
| I | Standover height | 65.3 | 67 | 67.9 | 67.9 | 69 |
| J | Wheelbase | 118.8 | 121.8 | 124.7 | 126.6 | 129.1 |
| Reach | 42.5 | 44 | 46.5 | 48 | 50 | |
| Stack | 60.7 | 62.7 | 63.6 | 64.5 | 65.4 |
