ENVE Foundation AR40 Wheelset
Overview
The AR40 is the latest addition to the Foundation line-up. Featuring an aerodynamically optimized 40 mm rim depth front and rear, with a 25mm internal rim width, the AR40 is designed to deliver ultimate versatility for the road rider and racer looking for performance on and off-road. Borrowing from SES rim design knowledge, the AR40 is aerodynamically tuned for 29 mm – 30 mm tyres.
Key Features
- Depth: 40mm
- Inner rim width: 25mm
- External rim width: 32mm
- Rim Weights Front/Rear: 425 / 425 grams
- Wheelset Weight: 1515g
- Internal Molded Spoke Holes
- Hole count: 24/24
- Aero optimised for 28-30mm tubeless tires
- ENVE Innerdrive Foundation Hub CL – 60t Engagement
- Sapim CX- Ray J-Bend Spokes
- Tubeless, Wide Hookless Bead Design
- Intended Use: Road and Gravel
- 5-year Factory Limited Warranty and cover through ENVE's Incidental Damage Protection Programme
Product information
Returning a product is easy using our Returns Portal, which allows you to send your product back to us by dropping off your return items at any one of over 8,500 EVRI locations around the UK.
You have 30 days to return your item from when it reaches you
If you wish to return a product under warranty, please see our Saddleback Warranty Information page for more information.
- Standard delivery (3-5 working days) - £3.50
- Express delivery (1-2 working days) £4.99
For more information on delivery times and prices click here.
Holiday shipping deadlines
To receive your order before the 25th, please place it by Friday, December 19th. We’ll continue shipping through December 24th, but orders placed after December 19th may not arrive until after the holidays.
Holiday office & service hours
Dec 25th – Jan 1st
Office Closed – our team will be offline during this time (no phone or email support)
Tue, Dec 30th
Limited Shipping – warehouse will be processing limited orders (delivery expected Jan 2nd or later)
Fri, Jan 2nd
Back to normal – phone and email support are open again
The AR40 is the latest addition to the Foundation line-up. Featuring an aerodynamically optimized 40 mm rim depth front and rear, with a 25mm internal rim width, the AR40 is designed to deliver ultimate versatility for the road rider and racer looking for performance on and off-road. Borrowing from SES rim design knowledge, the AR40 is aerodynamically tuned for 29 mm – 30 mm tyres.
Gravel Rated
While designed primarily for on-road performance, the AR40 has been tested and qualified to ENVE’s gravel standards to ensure safety and speed for gravel riding and racing applications. The wide range of capabilities make the AR40 a perfect upgrade to any modern road bike, all-road bike, or gravel racing bike.
Wind Tunnel Tested, Real-World Proven
Like the SES wheel family, the Foundation Collection and the AR40 has been tested at the Mercedes-Benz Formula One Wind Tunnel to deliver best-in-class real world aero performance. Like all ENVE's rims, the AR40 was developed in-frame and tested at multiple speeds, 20 mph/32 kph and 30 mph/48 kph. This testing ensures that the AR40 delivers a performance advantage to riders of all abilities.

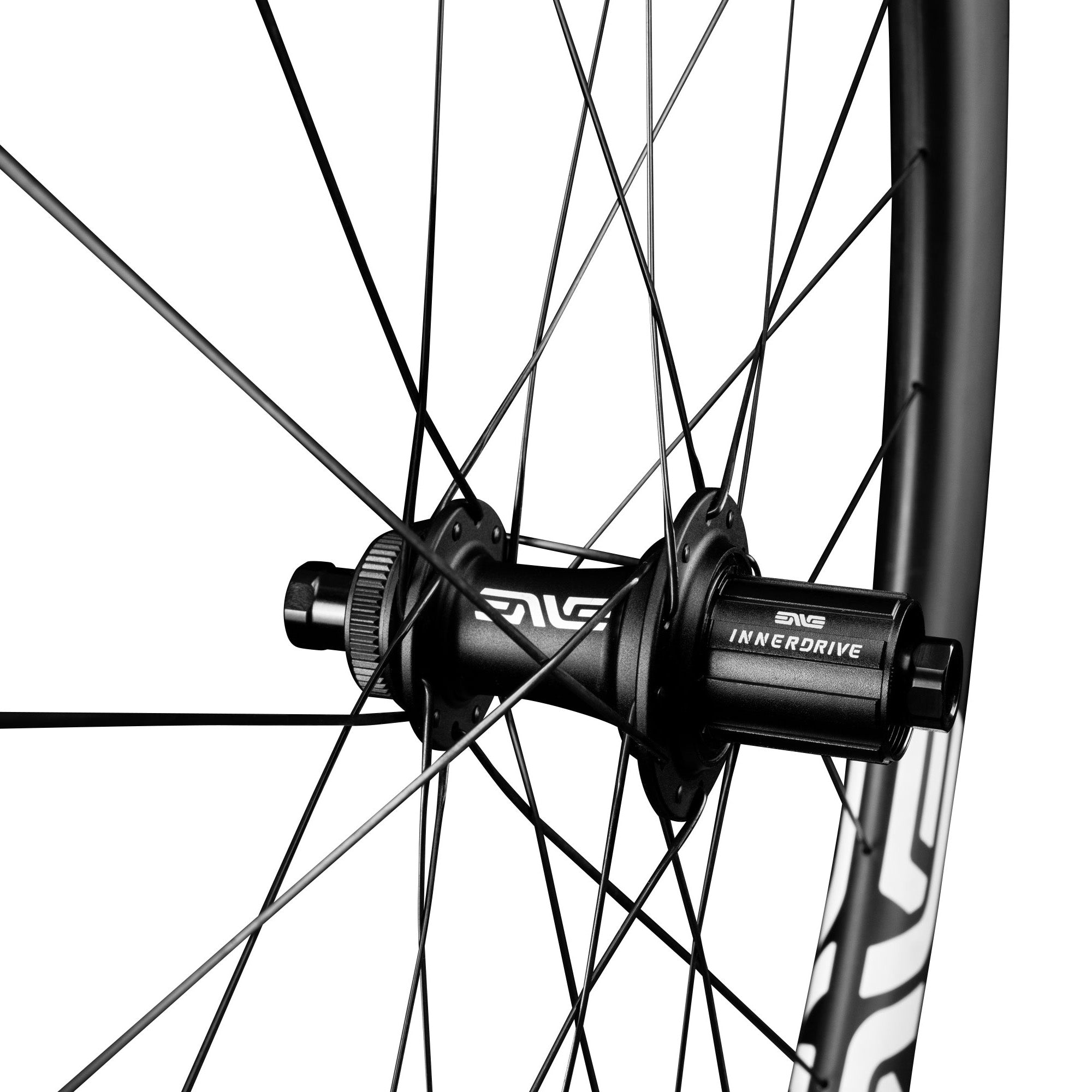

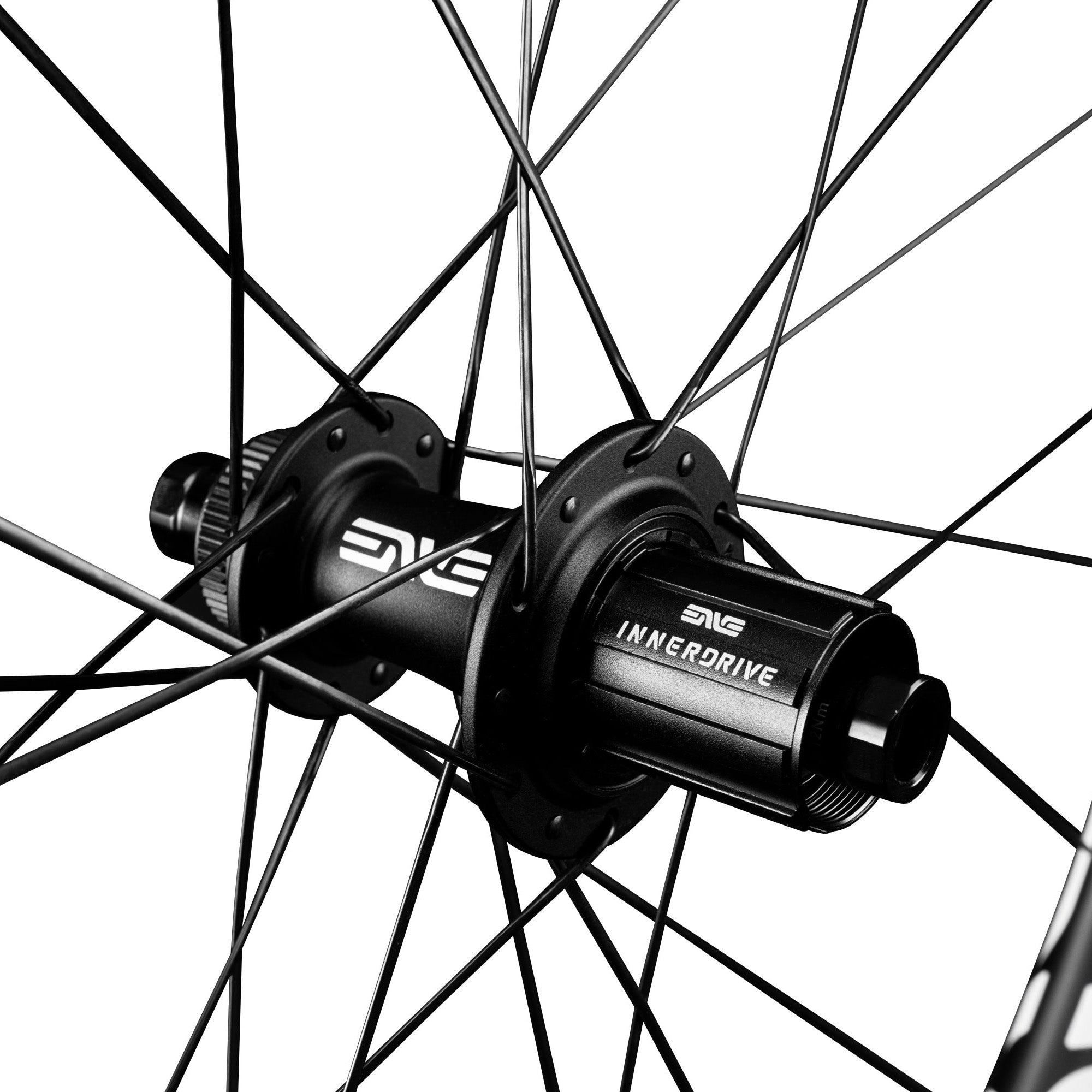

InnerdriveTM Hubs
INNERDRIVE™ represents the pinnacle of bicycle drive mechanisms. Oversized steel ratchets are positioned inboard and over the bearings reducing stress on the axle and bearings while ensuring positive and reliable engagement.
| Specification | Front | Rear |
|---|---|---|
| Wheel Weight | 690g | 825g |
| Total Wheelset Weight | 1515g (Includes Tape and Valves - HG Freehub) | |
| Rim Weight | 425g | 425g |
| Depth | 40mm | |
| Internal Rim Width | 25mm | |
| Sidewall Width | 3.6mm | |
| Effective Rim Diameter (ERD) | 579mm (+/- 3mm) | |
| Pinch Flat Technology | Wide Hookless Bead | |
| Hole Count | 24h | 24h |
| Hub | ENVE INNERDRIVE - Foundation | ENVE INNERDRIVE - Foundation |
| Spoke Length | 278mm / 280mm | 274mm / 280mm |
| Spokes | Sapim CX-Ray J-Bend | |
| Nipples | Alpina Nylock Brass | |
| Spoke Tension | 120kgf | |
| Brake Type | Centerlock | |
| Tubeless Tape Width | 29mm | |
| Tubeless Valve Length | 61mm | 61mm |
| Tire Compatibility | 27mm - 50mm (Min. 27mm Tubeless Approved) | |
| Max Tire Pressure (Min Tire) | 80 psi | 5.5 bar | |
